TRANSAXLE - TA5260
46

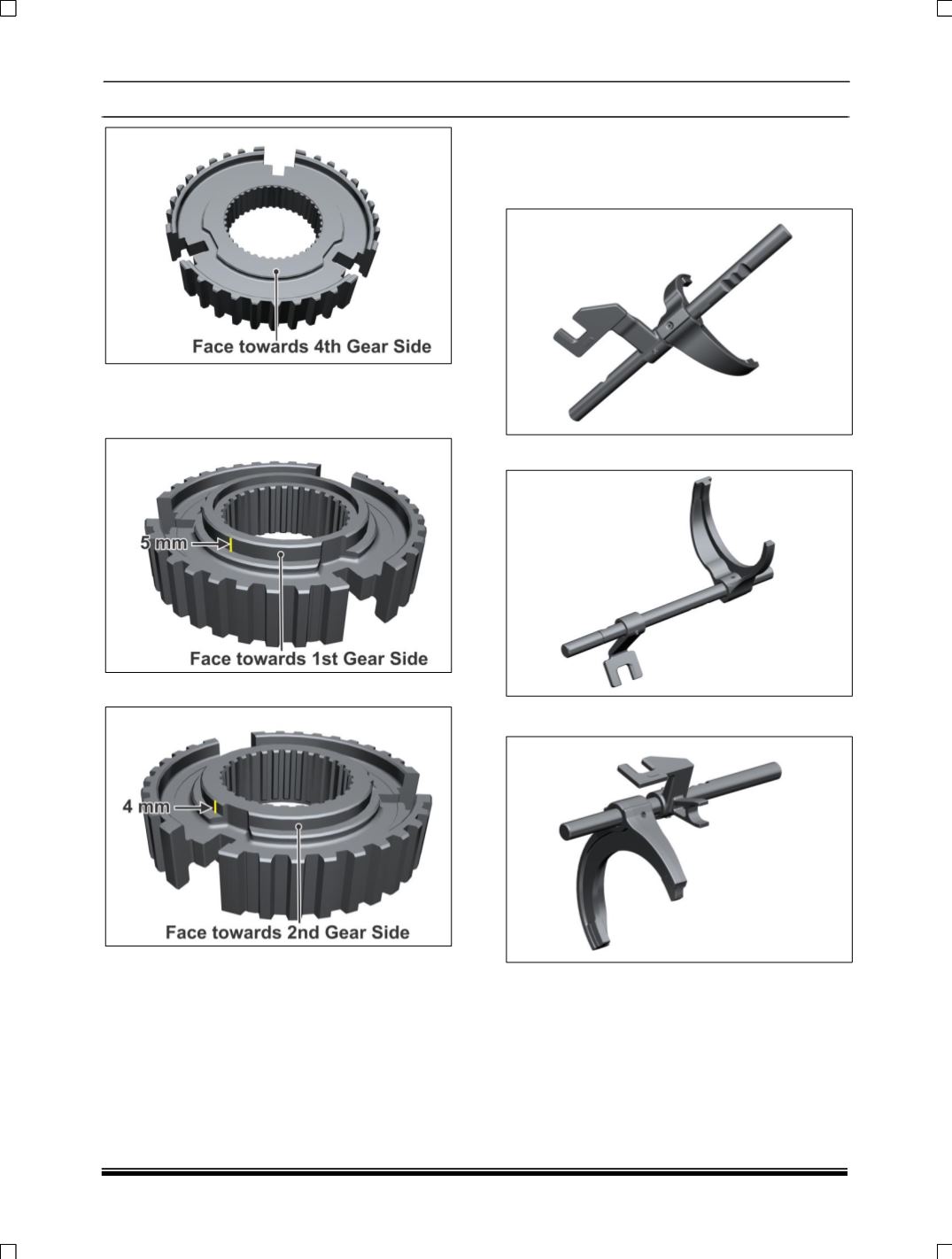

3rd & 4th Engaging Gear
3. 1st and 2nd engaging gear is Fitted on Lay
Shaft.
1st & 2nd Engaging Gear
1st & 2nd Engaging Gear
III. SHIFTER SHAFT SUB ASSEMBLY:
Gently hammer the double dowel pins of the shifter
fork after placing in vice to remove the shifter fork
from shifter shaft as marked in
Shifter shaft 3rd 4th speed
Shifter shaft 5th & rev speed
Shifter fork 1st & 2nd speed
