TRANSAXLE - TA5260

40

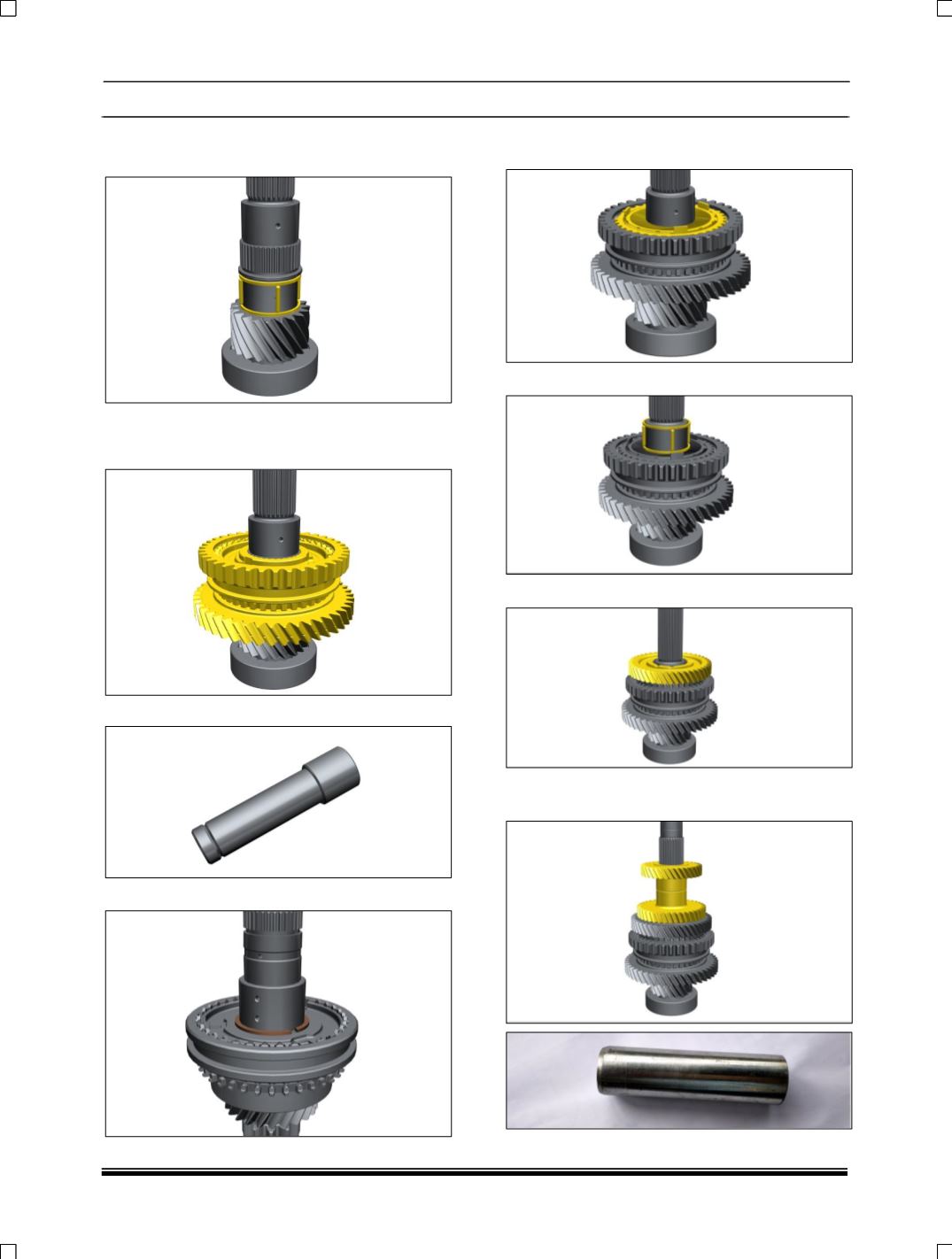

F. ASSEMBLY OF LAY SHAFT:

1. Place Needle Cage.

2. Install 1

st

speed gear, Twin cone Assembly &

Engaging Gear Assembly with shifter sleeve

using Press with

Drift 2834 5890 2607.

Drift 2834 5890 2607

3. Fix Snap Ring

using

Plier.

4.

Place

outer double cone, intermediate & inner

synchro cone.

5. Place

Needle

Cage.

6.

Place

2

nd

speed gear.

7. Install & Press 3

rd

and 4

th

speed Gear

using Press with

Drift 2654 5890 3511.
