1.2L REVOTRON ENGINE
104

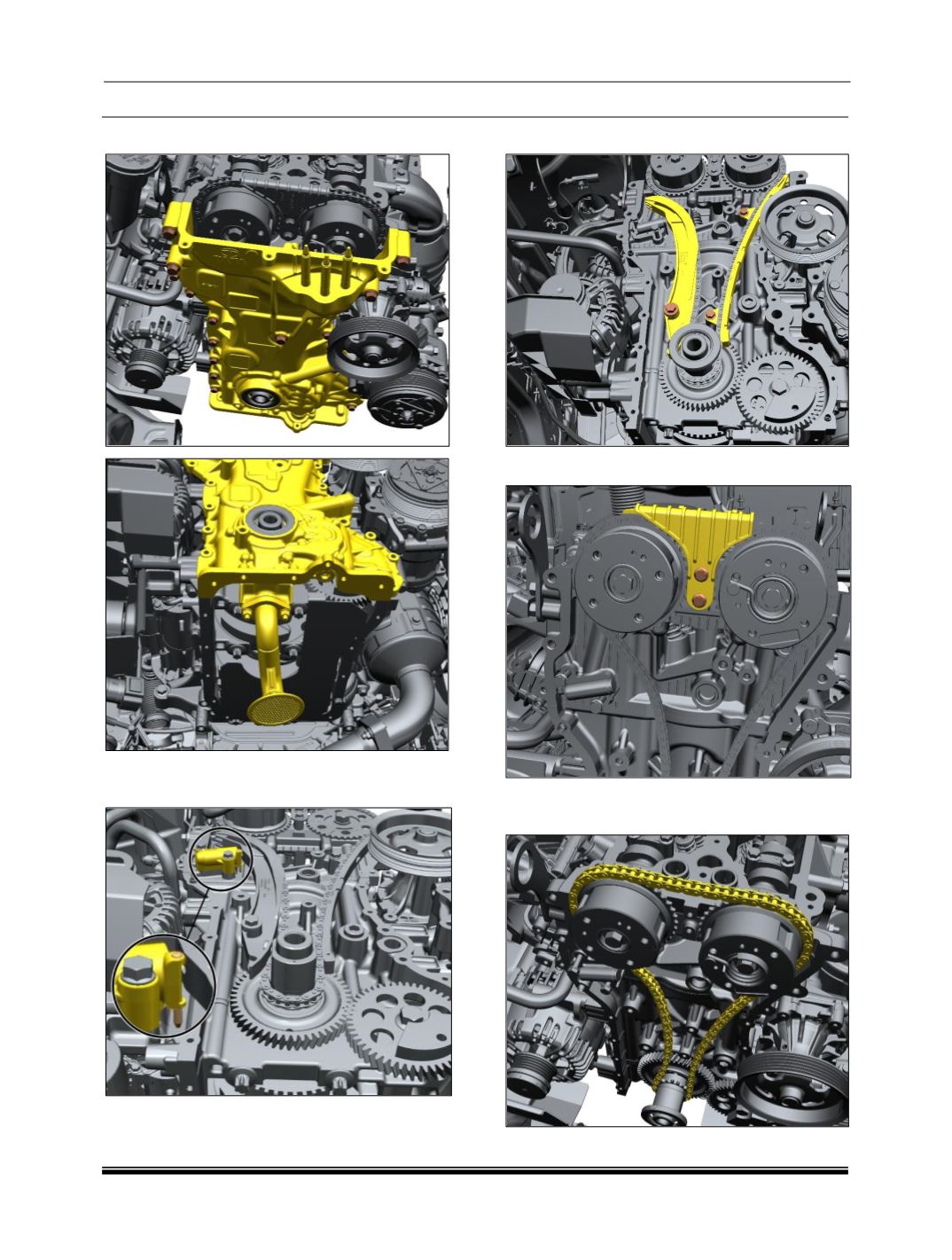

13. Remove timing cover and oil pump assembly.
14. Release tension and lock the timing chain
tensioner using locking pin.
15. Pin-Timing chain tensioner plunger locking –
5424 5890 06 04
16. Remove movable and fixed guide rail.
17. Remove the camshaft carrier.
18. Remove the Timing chain from the gear train
assembly.
FITMENT
