1.2L REVOTRON ENGINE
101
FITMENT
For fitment follow the reverse order of removal.
Tighten fasteners to the recommended
torque
.
Thermostat cover mounting: M6 Bolt– (1 Kg-m)
Checking procedure of thermostat:
1. Remove thermostat element from thermostat
housing.
2. Mount thermostat element in a suitable fixture
and place the fixture in a vessel filled with water.
3. Fix dial gauge with its spindle on valve surface
with a pretension of 0.5mm
4. Heat the vessel and measure the water
temperature with proper thermometer.
5. Note down the temperature when dial gauge
needles starts moving indicating valve opening.
6. Note down the water temperature for needle
movement
(for valve fully open position).
7. The opening temperature and fully open
temperature as measured should be as per the
mentioned specifications.
If they do not meet the specifications, replace the
thermostat element.
I. COMPRESSOR AND ALTERNATOR BELT
REMOVAL.
The belt used in this vehicle is multi ribbed belt.
This belt is pre-tensioned over Air conditioner
compressor and crank shaft pulley and therefore
do not require the tensioner as this is capable of
efficient power transmission.
CAUTION
The belt is not interchangeable and should
not be interchanged with normal multi-
ribbed belts.

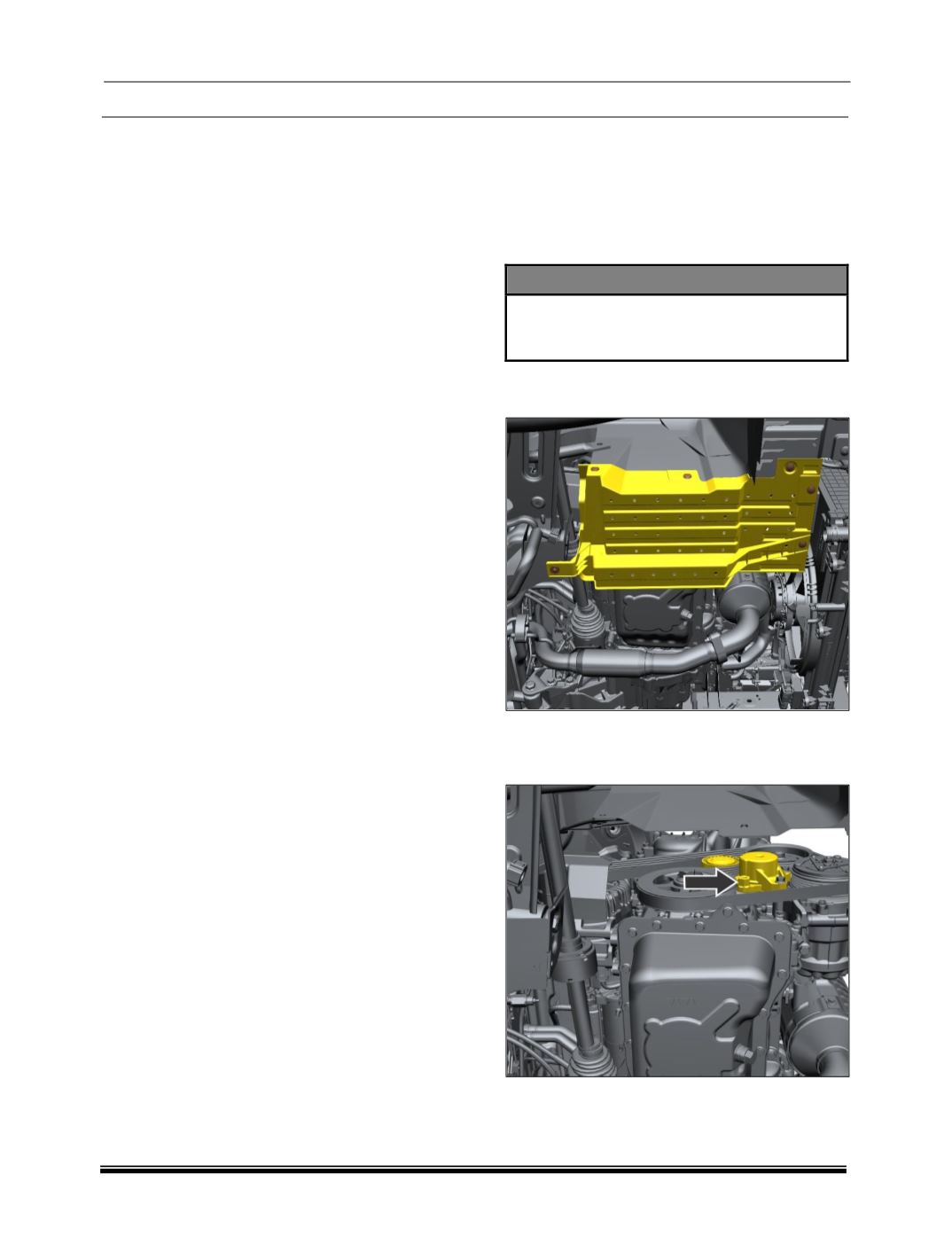

1. Remove front RH mud liner.
(Refer Body
section for removal procedure).
2. Rotate the tensioner point by using ring
spanner opposite to belt tension to remove the
belt
