1.2L REVOTRON ENGINE
110

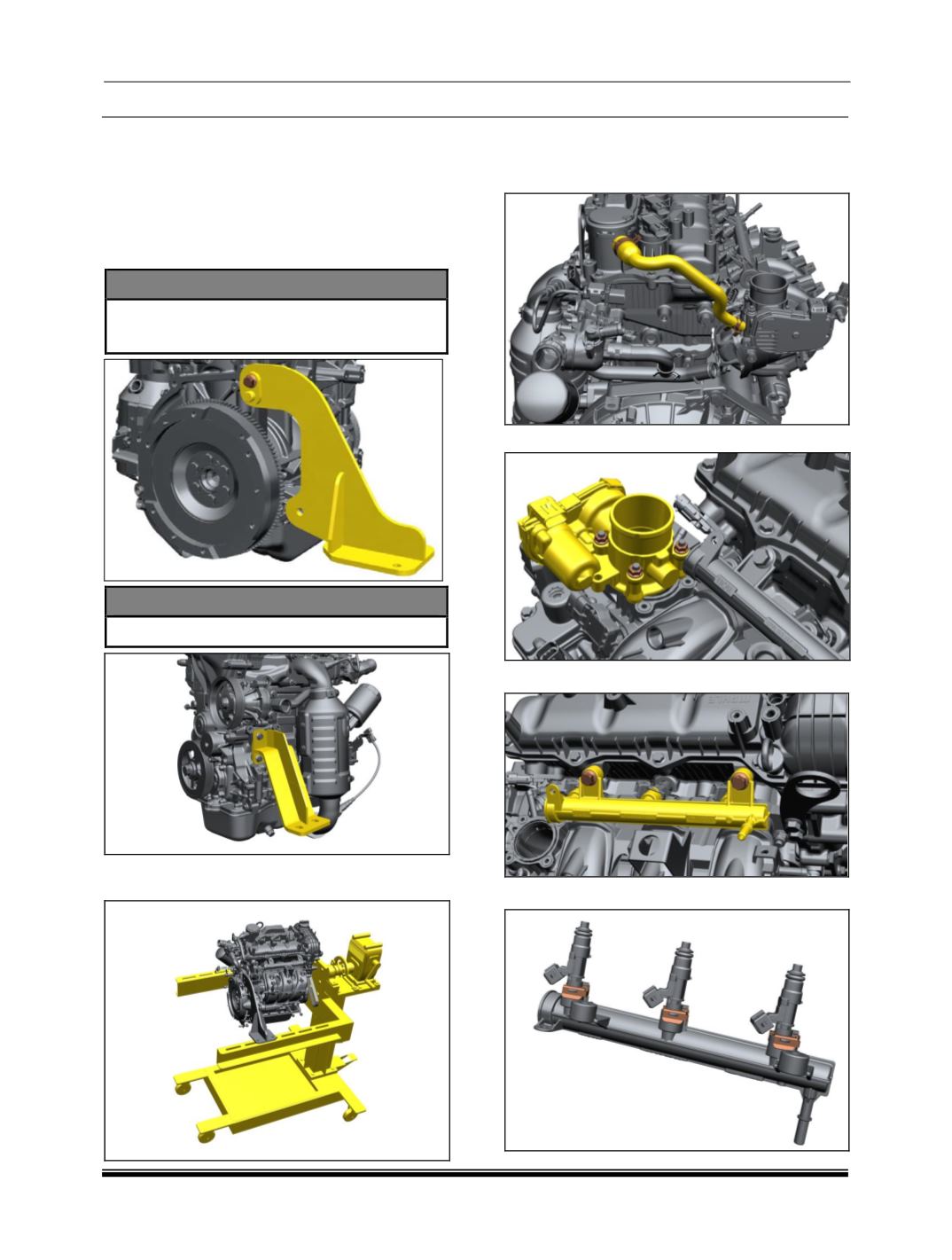

8. ENGINE OVERHAULING (ON OVERHAUL
STAND):
A. ENGINE DIS-ASSEMBLY :
I. Removal of Intake Manifold :
1. Remove compressor and Fix the LH & RH
mounting brackets to the engine with the help
of adopter.
SPECIAL TOOL
LH Mounting Bracket -
2702 5890 24 03
Adopter -
5438 5890 2403
SPECIAL TOOL
RH Mounting Bracket -
5424 5890 24 02
2. Safely lift the engine with the help of crane
and fix it on overhaul stand.
3. Remove Spring Band Clamp.
4. Remove the Rubber hose from Head cover
OCV to Intake manifold.
5. Remove Electronic Throttle Body.
6. Remove the Fuel Rail along with the injectors.
7. Remove the injector clip.
