1.2L REVOTRON ENGINE
135

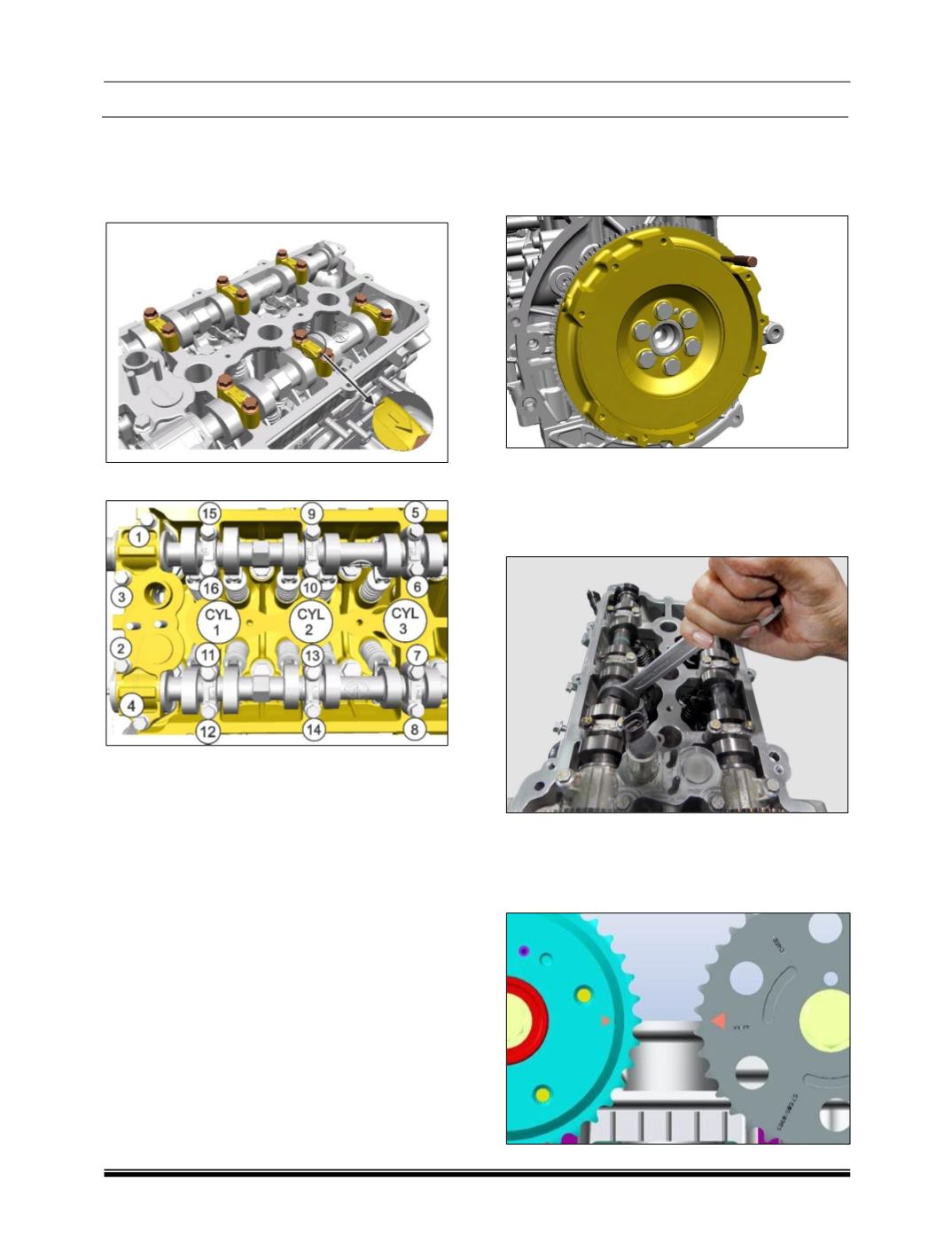

8. Assemble the Cylinder Head cam cap bolts
along with the washers, starting from the ends
of the cylinder head and working inwards to
the center. (Keep the arrow of cap in outward
direction.)
9. Refer the loosening sequence.
V. Assembly of Engine Timing Chain
1. Ensure Camshaft lobes are in correct position
(refer camshaft assembly on head).
2. Ensure flywheel locked in TDC position
3. Soft tighten the VCT and sprocket on
respective cams with locating dowel.
4. With help of spanner slightly rotate both
camshafts to match the arrow mark on VCT
and sprocket as shown.
5. Soft tighten the VCT on intake camshaft and
exhaust sprocket on exhaust Camshaft with
locating dowel and bolts as shown along with
Camshaft Sensor Plate. (Ensure the direction
of the arrows opposite to each other.)
