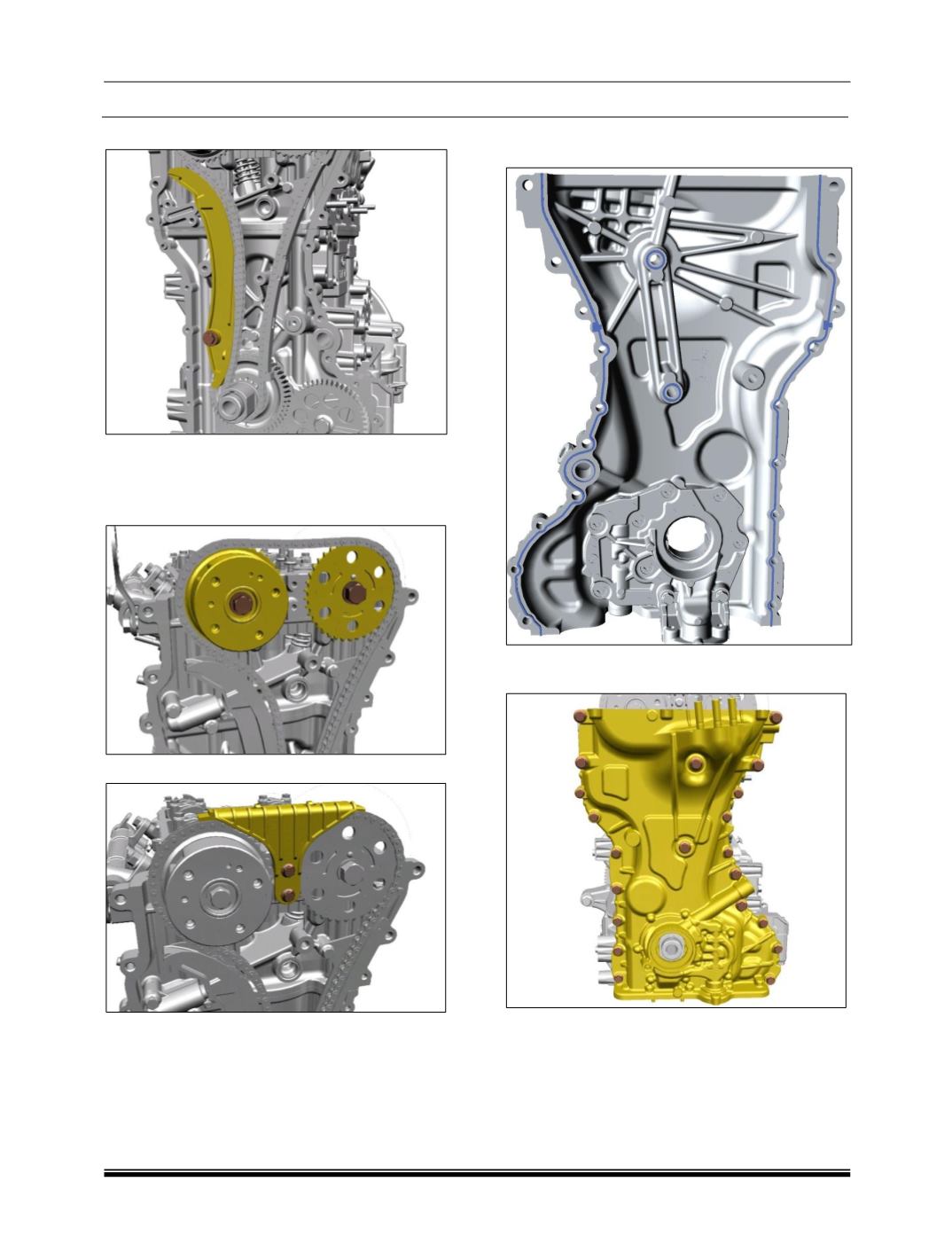

10. Assemble the movable guide.
11. Adjust the tension of Timing chain by unlock
the tensioner by removing locking pin.
12. Tighten the VCT and Exhaust camshaft
sprocket by specific torque.
13. Assemble cam chain guide
14. Spread the liquid red sealant on timing cover
without spilling the sealant in threaded holes.
15. Assemble the engine Timing Cover.( Refer
the tightening sequence)
