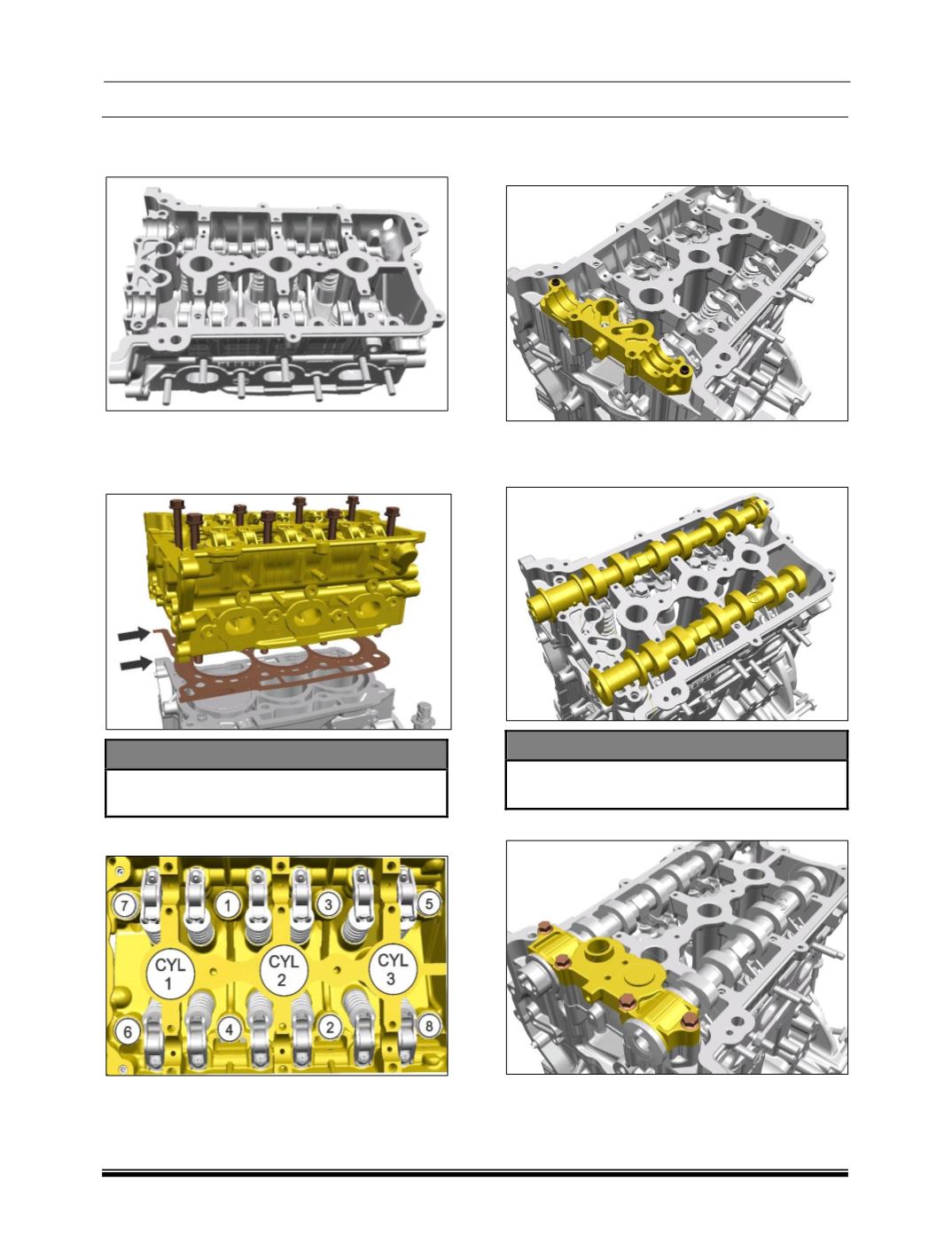

IV. Assembly of Cylinder Head
1. Place the cylinder head on the table.
2. Mount the cylinder head gasket over the
block.
3. Assemble the cylinder head on the block.
NOTE
Match the gasket profile to Cylinder block
surface as shown in figure..
4. Tighten the fasteners as per given sequence.
5. Assemble the lower ITG Bearing Cap with
locating dowels. Ensure the NRV (Non return
valve) in place inside lower ITG.
6. Place the camshafts to their respective
location in such way that the cam lobes of first
cylinder are opposite to each other as shown.
NOTE
Cam lobes should not be pressing any
valves.
7. Assemble the ITG Bearing Cap Upper.
