Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 868 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
resolved
3
Check whether the Vehicle is fitted with Battery specified
by TML.
Go to Next step
Convey User that
Vehicle battery
shall be replaced at
TML authorized
dealers only.
In case of any
Burnt WH or failed
controllers, Rectify /
Replace
4
Fault Persists?
Replace Battery
Go to next step
5
Fault Persists?
Call Hot line
Follow the steps
again for
reconfirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.

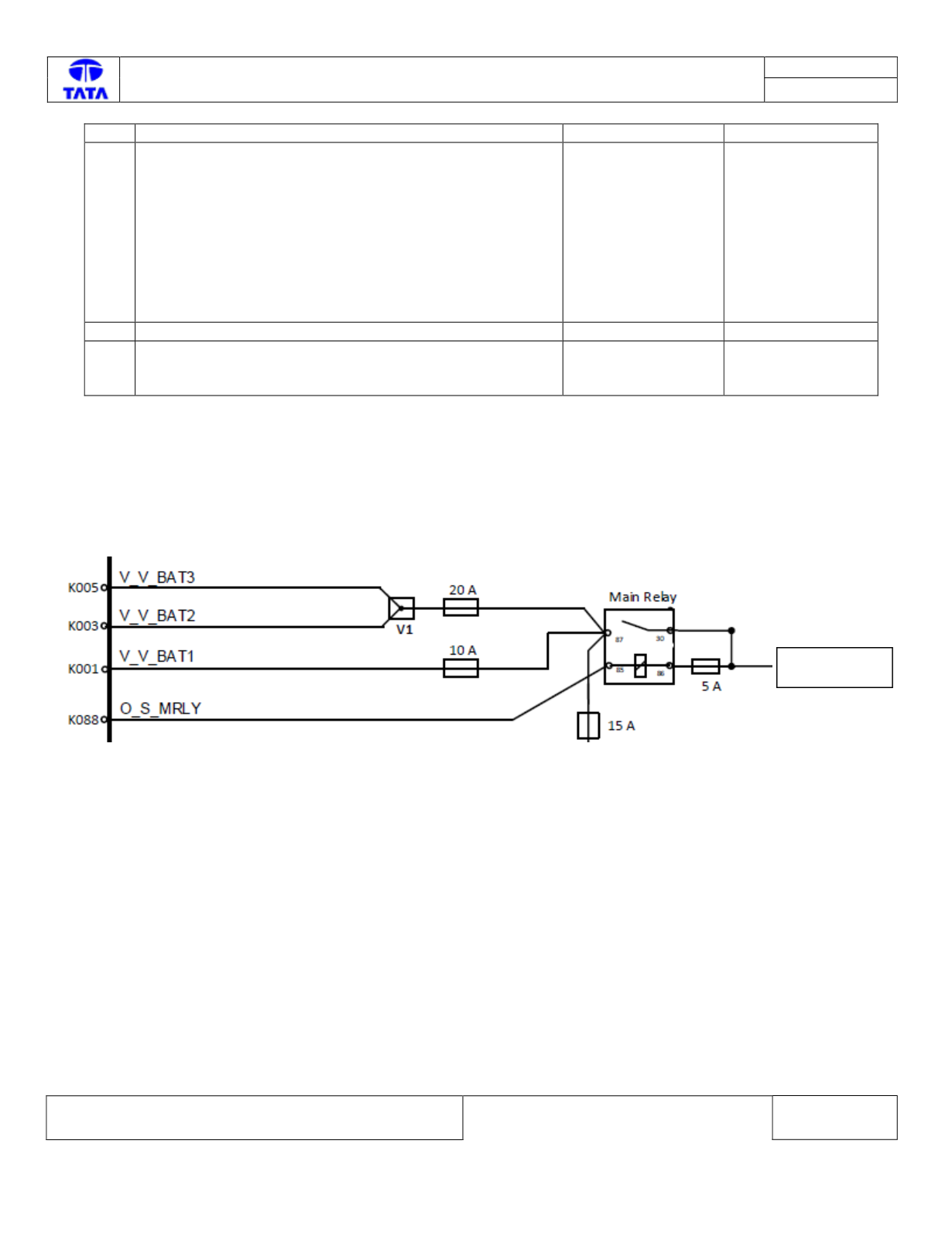

Circuit Schematic:
VBATT
