harness
3
Are there any pins backed out from the EMS ECU
Connector
Rectify/Replace
Connectors
Go to Next Step
4
Check whether any of the Inlet DPF Temperature sensor
(A075, A074) are short circuited to Battery / Ground.
Rectify the wiring
Harness
Connections
Go to Next Step.
5
Dis-connect Inlet DPF temperature sensor from vehicle and
check as below. At 25 degrees of ambient temperature,
measure the resistance across the sensor, it shall be ~ 220
Ohms.
Go to next step
Call Hotline for
assistance in
deciding whether
Inlet DPF Sensor
has to be replaced.
6
Fault Persists.
Call Hotline for
assistance in
deciding whether
Inlet DPF Sensor
has to be replaced.
Go to next step
7
Fault persists
Call Hotline
Repeat the above
steps for re-
confirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.

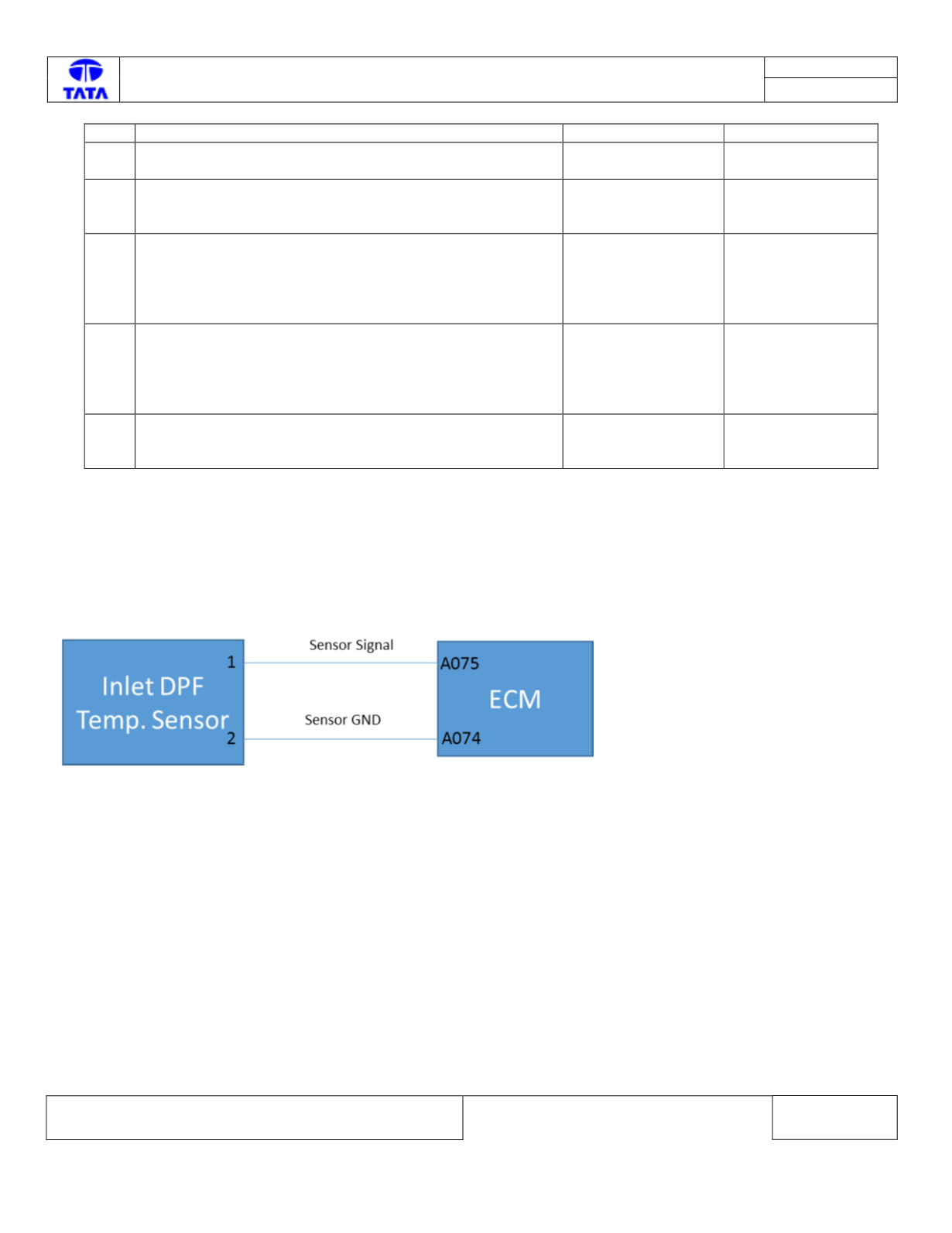

Circuit Schematic:
