SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 513 of 549

Chamber

Coding

Color

Chamber A

D

Blue

Chamber B

C

Brown

Connector View & Information:-

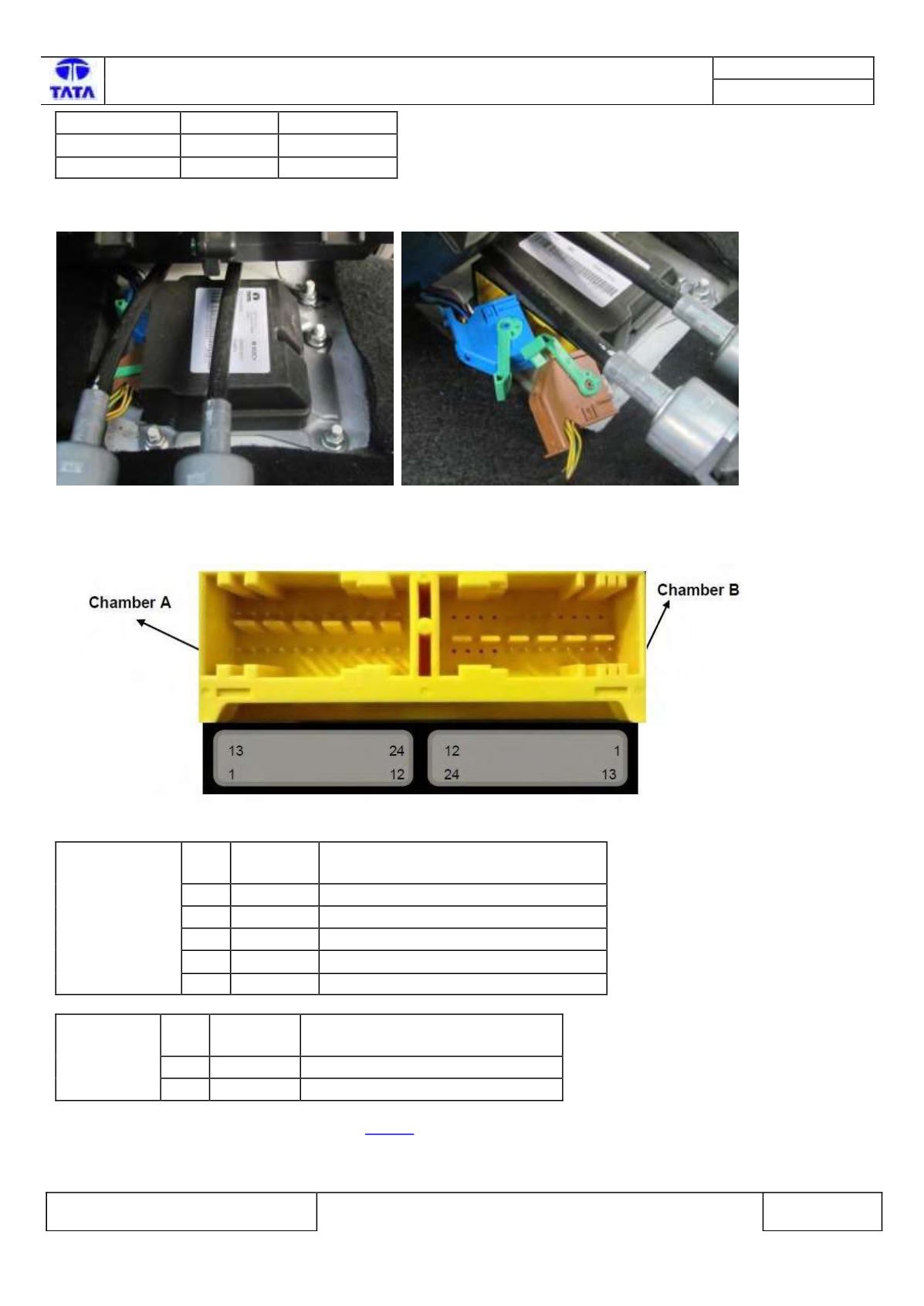

Fig473:- Airbag ECU connector interface.

CHAMBER A

Pin

No.

Pin

Name

Description

1

CAN_H

CAN High

2

CAN_L

CAN Low

7

A_GND

Common Switch GND

12 V bat

Supply Voltage Battery

23 GND

Power GND

CHAMBER B

Pin

No.

Pin

Name

Description

3

BTRD+

Belt Tensioner Rear Driver, Plus

4

BTRD-

Belt Tensioner Rear Driver, Minus

Please refer Airbag ECU Pin Assignment on

Page 6 f

or more details.

Inspection Method:-

N.A.

Airbag ECU is fitted in the floor of central console in the car.

.

Fig:471 Airbag ECU location Fig:472 Airbag Wiring Harness connector
