SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 244 of 549
Connector Location:-
The Chamber Coding & color are:
Chamber Coding Color
Chamber A D Blue
Chamber B C Brown
Connector View & Information:-

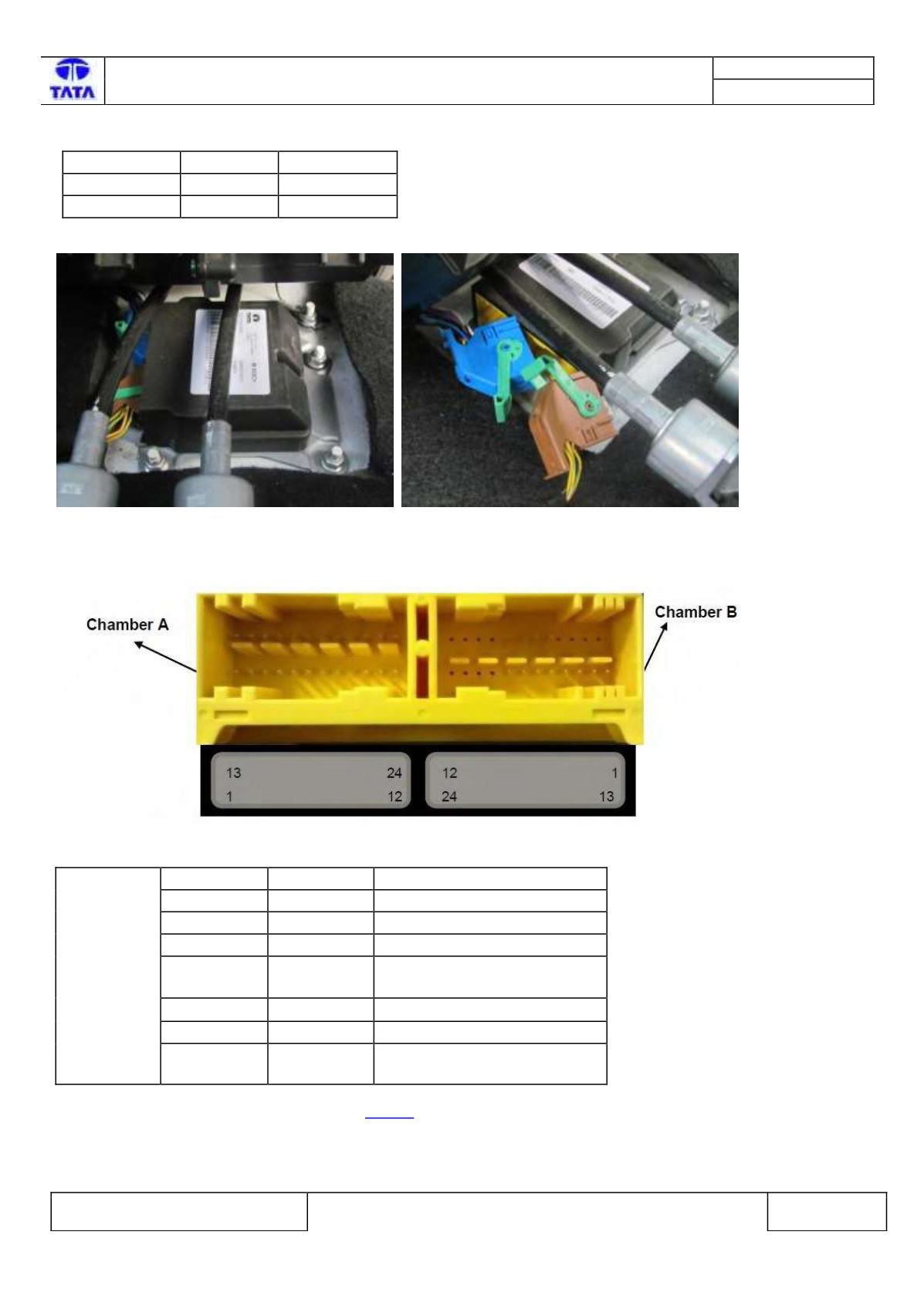

Fig225:- Airbag ECU connector interface.
Pin No. Pin Name Description
1 CAN_H CAN High
2 CAN_L CAN Low
7 A_GND Common Switch GND
9 PADS Passenger Airbag
Deactivation Switch
12 Vbat Supply Voltage Battery
23 GND Power GND
24 PADI Passenger Airbag
Deactivation Indicator
Please refer Airbag ECU Pin Assignment on or more details.
Inspection Method:- N.A.
Airbag ECU is fitted in the floor of central console in the car.
.
CHAMBER A
Fig:223 Airbag ECU location Fig:224 Airbag Wiring Harness connector
