SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 63 of 549

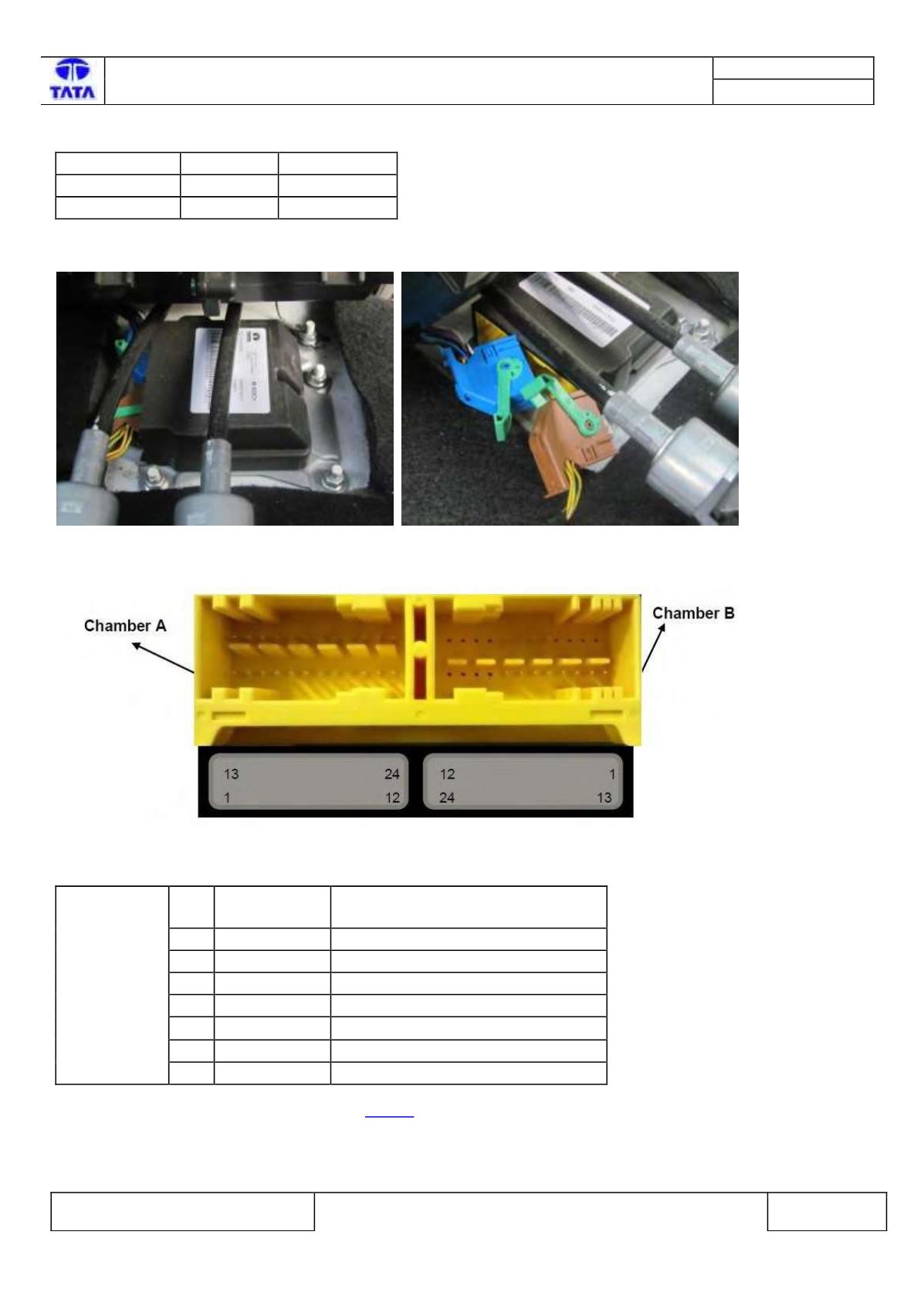

Connector Location:-

The Chamber Coding & color are:

Chamber

Coding

Color

Chamber A

Blue

Chamber B

Brown

Connector View & Information:-

Fig60:- Airbag ECU connector interface.

Pin

No.

Pin Name

Description

1 CAN_H

CAN High

2 CAN_L

CAN Low

7 A_GND

Common Switch GND

12 Vbat

Supply Voltage Battery

19 BTFD-

Belt Tensioner Front Driver, Minus

20 BTFD+

Belt Tensioner Front Driver, Plus

23 GND

Power GND

Please refer Airbag ECU Pin Assignment on

or more details.

Inspection Method:-

N.A.

Airbag ECU is fitted in the floor of central console in the car.

CHAMBER A

Fig:58 Airbag ECU location Fig:59 Airbag Wiring Harness connector
