SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 40 of 549

Connector View & Information:-

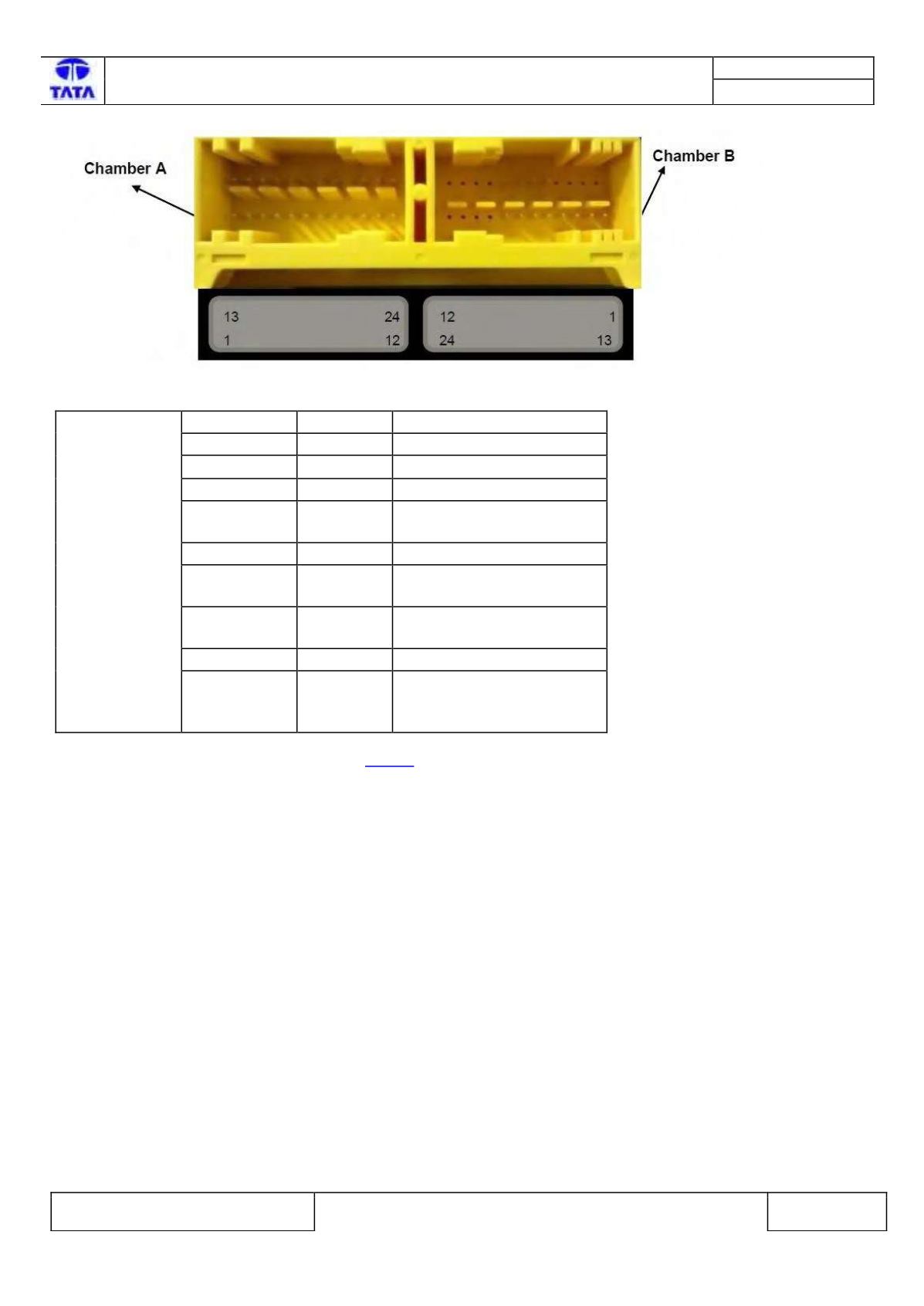

Fig34:- Airbag ECU connector interface.

Pin No.

Pin Name

Description

1

CAN_H

CAN High

2

CAN_L

CAN Low

7

A_GND

Common Switch GND

9

PADS

Passenger Airbag

Deactivation Switch

12

V bat

Supply Voltage Battery

17

ABFP+

Front Airbag Passenger,

Plus

18

ABFP-

Front Airbag Passenger,

Minus

23

GND

Power GND

24

PADI

Passenger Airbag

Deactivation Indicator (via

HW and CAN)

Please refer Airbag ECU Pin Assignment on

Page 6 f

or more details.

Inspection Method: -

N.A.

CHAMBER A
