Q5/X451 FATC
DTC Troubleshooting Data
Version: 1.0
Date: 16-Oct-2018
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Author: ERC
Page: 167 of 202

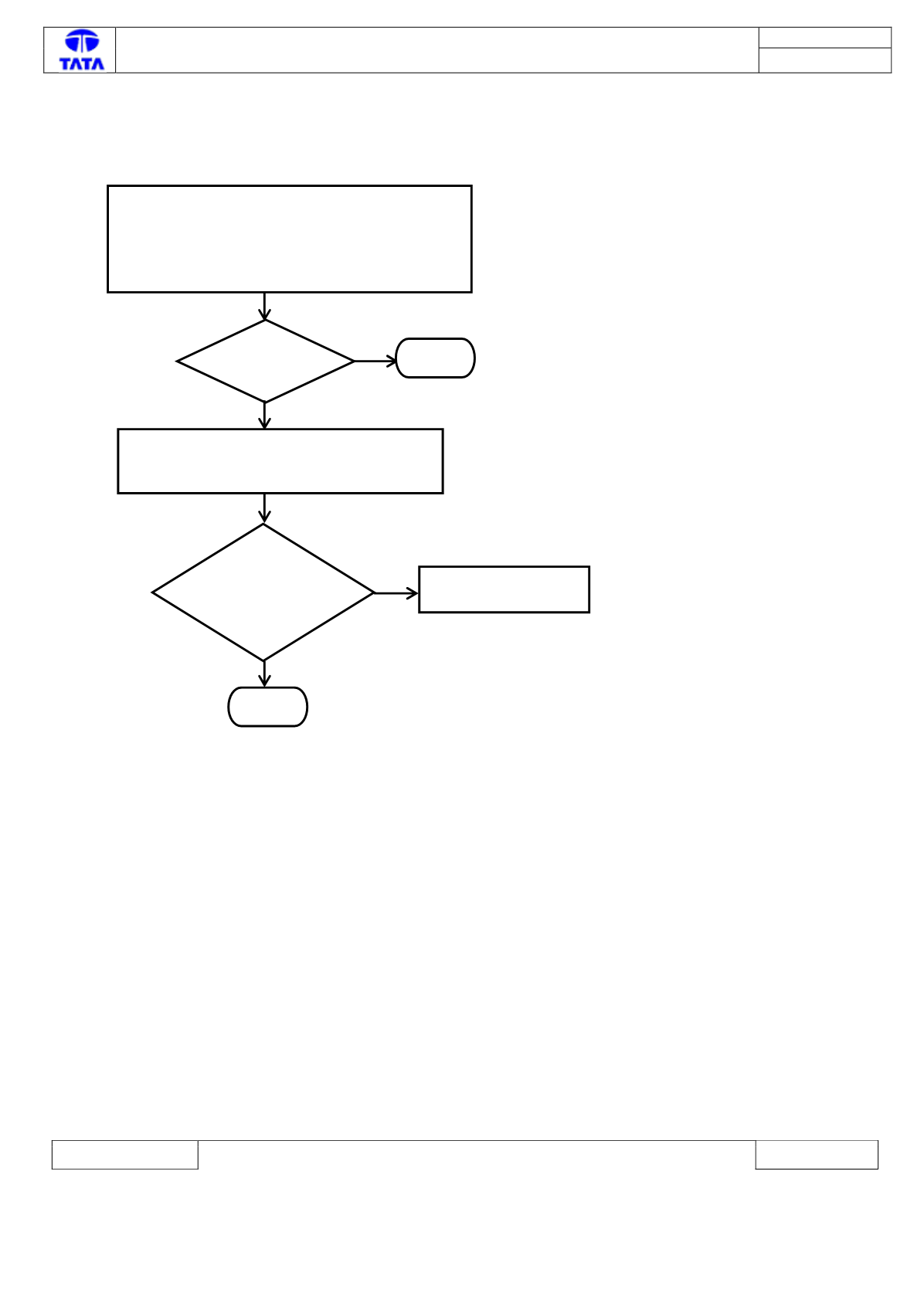

Trouble Shooting:-
Is continuity
Present?
Yes
Disconnect FATC ECU power supply
connector. Check pin C1-7 continuity with ground
pin 1 &2 .
No
Is DTC
Present?
Yes
No
Stop
1. Connect the TML Diagnostic Tool.
2. Turn the Ignition ON
3. Check the status of DTC’s (Memorized/Current)
. Record the DTC & Clear
4
5. Turn Ignition OFF & ON
6. Verify If
U131D -
11
88
is present
Replace wiring harness
)
Vehicle side
(
Stop
