DTC’s confirmation:-
After rectification, Rotate temperature Knob from control Panel and ensure the following points by referring Temperature
parameters using TML diagnostic tool before handing over to customer.
a) Physical check of temperature change when requested.
b) Read DID parameters
Air Temperature Feedback Power Supply
, which should be requested values.
Circuit Schematic Diagram:-
“Refer the circuit schematics from the tool”

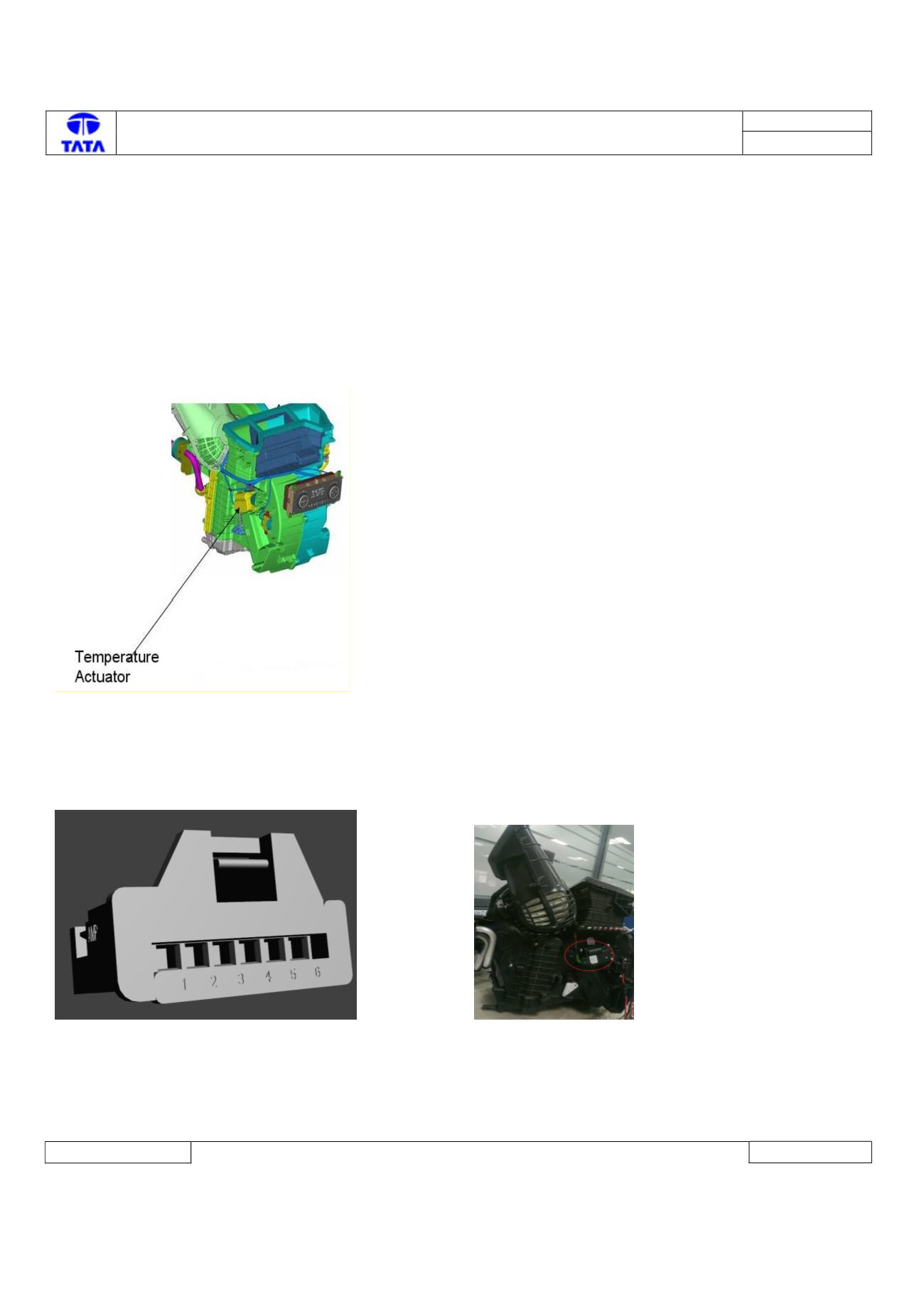

Component Location & Image:-
Connector Location: -
HVAC kit
Connector View & Information: -
PIN Assignment
