ABS DTC Troubleshooting Data
Version: 1.0
Date: 03-Dec-15
Author: ERC, Chassis E&E CoC
Page: 111 of 154
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Trouble Shooting:
DTC’s healing confirmation:
If the ABS lamp on Instrument Cluster goes OFF, DTC is healed. DTC might still be present in the history and can be
cleared.
Circuit Schematic Diagram:
Please refer t
o Annex 1.
Component/Connector Location & Image:
Please refer to
Annex 3 .Connector View & Information:
Please refer to
Annex 2 .Inspection Method:
N.A.
YES

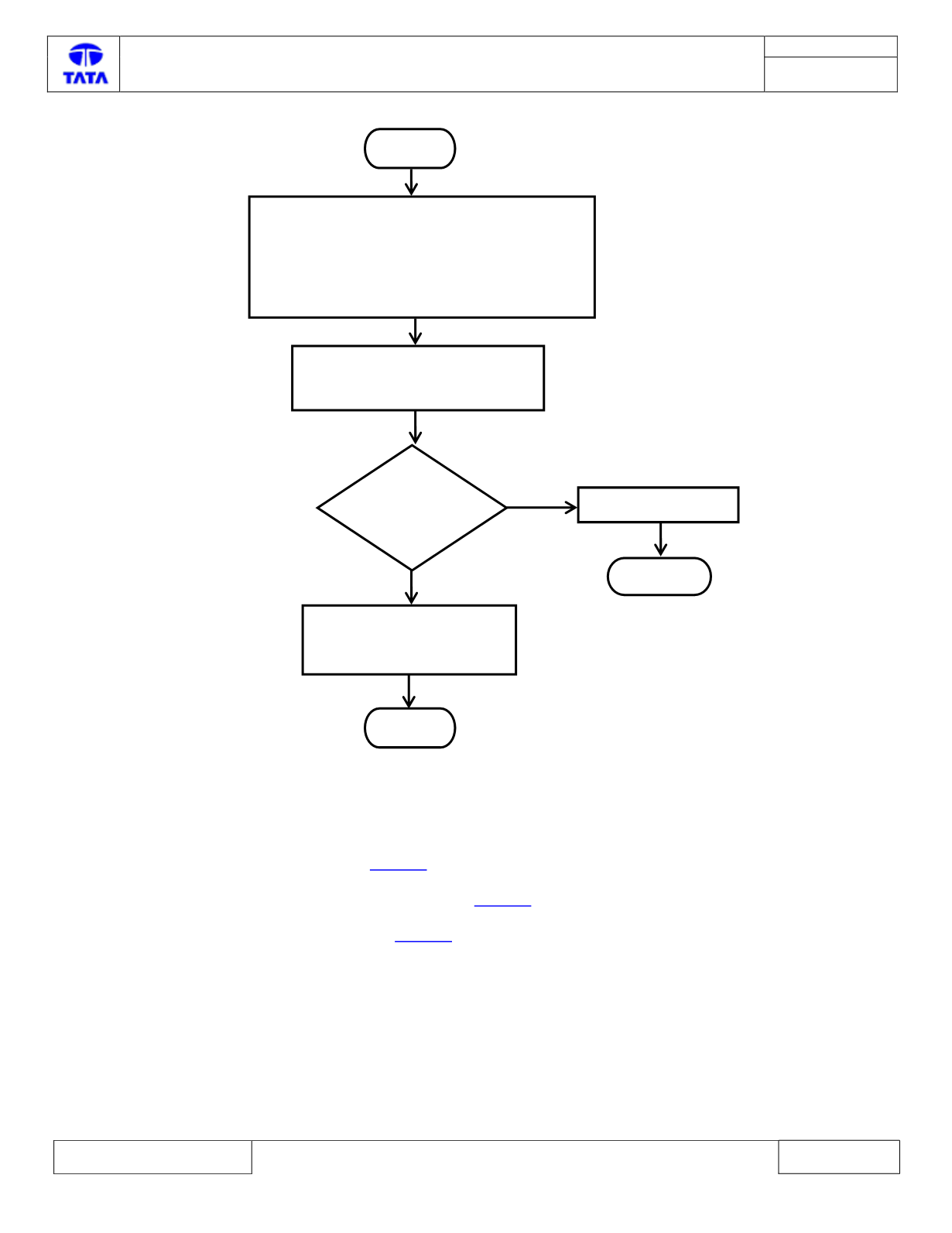

START
RECEIVED
POSITIVE
RESPONSE?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC U1604-41 IS PRESENT
WRITE VALID VARIANT MATCHING TO
ACTUAL VEHICLE CONFIGURATION
USING DIAGNOSTIC SERVICE
STOP
1. CLEAR DTC
2. TURN IGNITION OFF & ON.
3. WAIT FOR 5 SEC
REPLACE THE ECU
