Trouble Shooting:
DTC’s healing confirmation:
If the ABS lamp on Instrument Cluster goes OFF, DTC is healed. DTC might still be present in the history and can be
cleared.
Circuit Schematic Diagram:
Please refer t
o Annex 1.
Component/Connector Location & Image:
Please refer to
Annex 3 .Connector View & Information:
Please refer to
Annex 2 .Inspection Method:
N.A

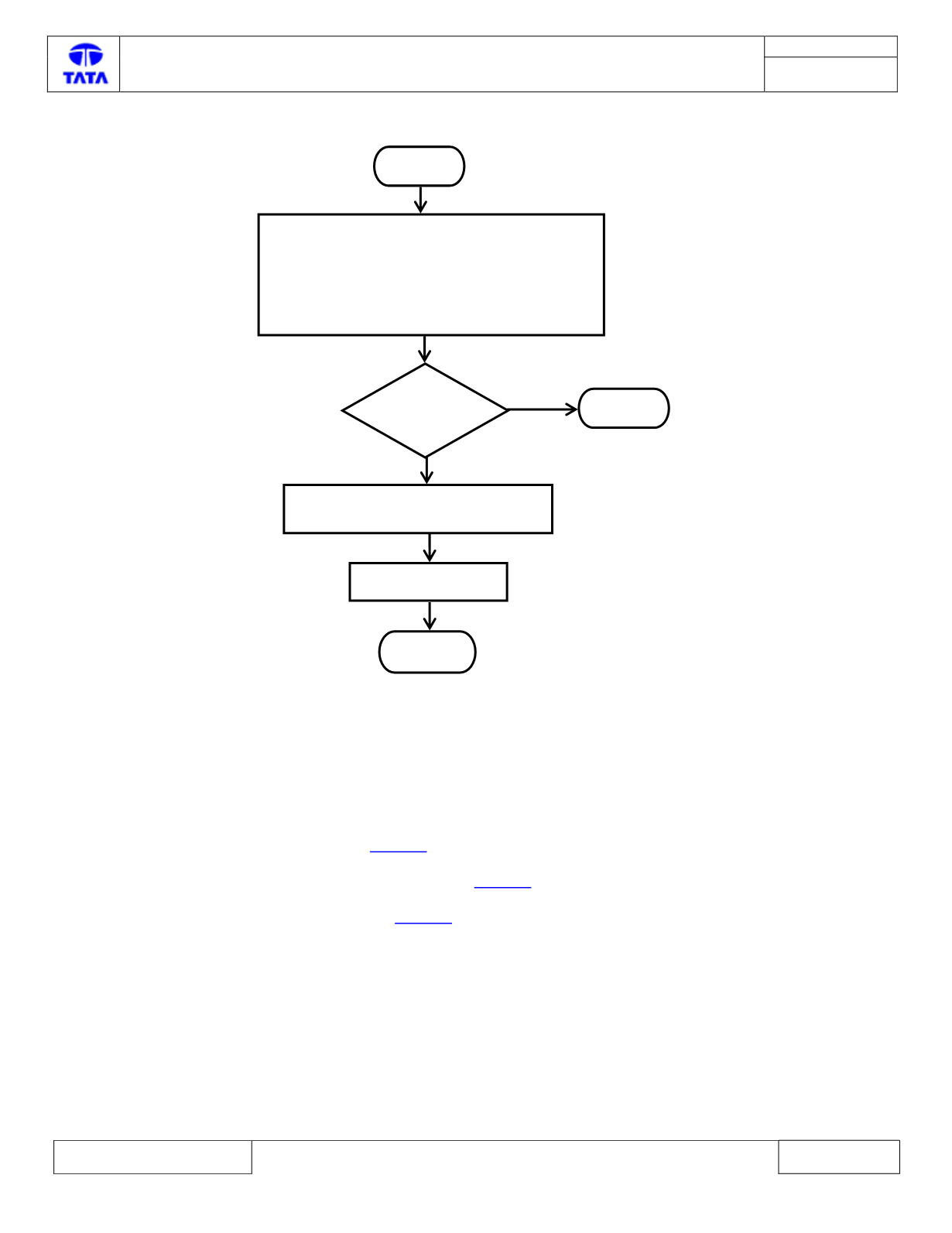

HYDRAULIC OR ELECTRIC FAILURE IN LEFT
FRONT INLET VALVE CIRCUIT
REPLACE THE ECU
STOP
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C0010-04 IS PRESENT
YES
