X2 Eagle
ABS DTC Troubleshooting Data
Version: 1.0
Date: 03-Dec-15
Author: ERC, Chassis E&E CoC
Page: 51 of 154
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s healing confirmation:
If the ABS lamp on Instrument Cluster goes OFF, DTC is healed. DTC might still be present in the history and can be
cleared.
Circuit Schematic Diagram:
Please refer t
o Annex 1.

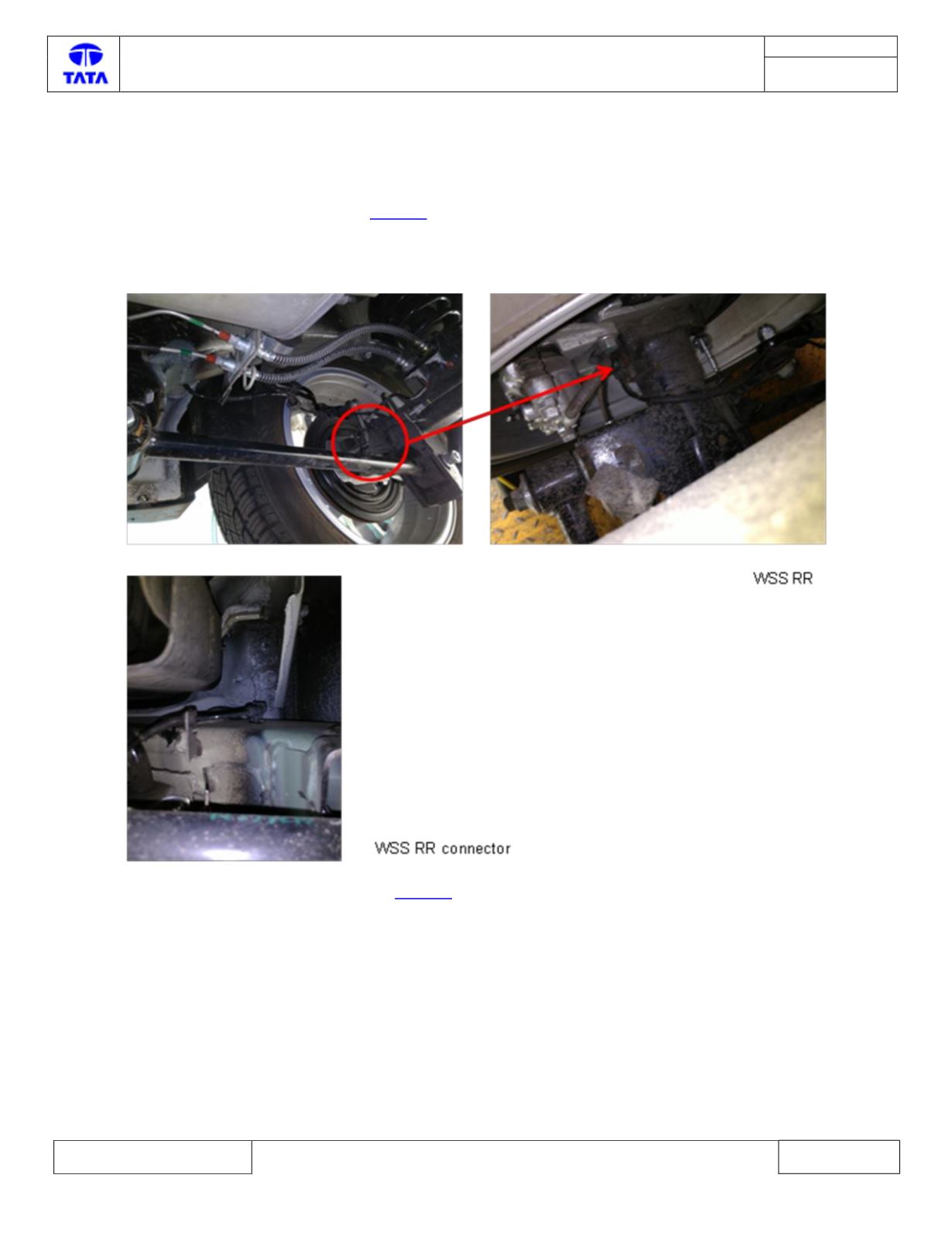

Component/Connector Location & Image:
Connector View & Information:
Please refer to
Annex 2 .Inspection Method:
N.A
