Vehicle Platform: OSPREY / AMP
ECU Name: PEPS
DTC Troubleshooting Data
Version: 1.2
Date: 29 Mar 2017
Author:
Rajasekhara Reddy
Page: 333 of 369
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Connector View & Information:-

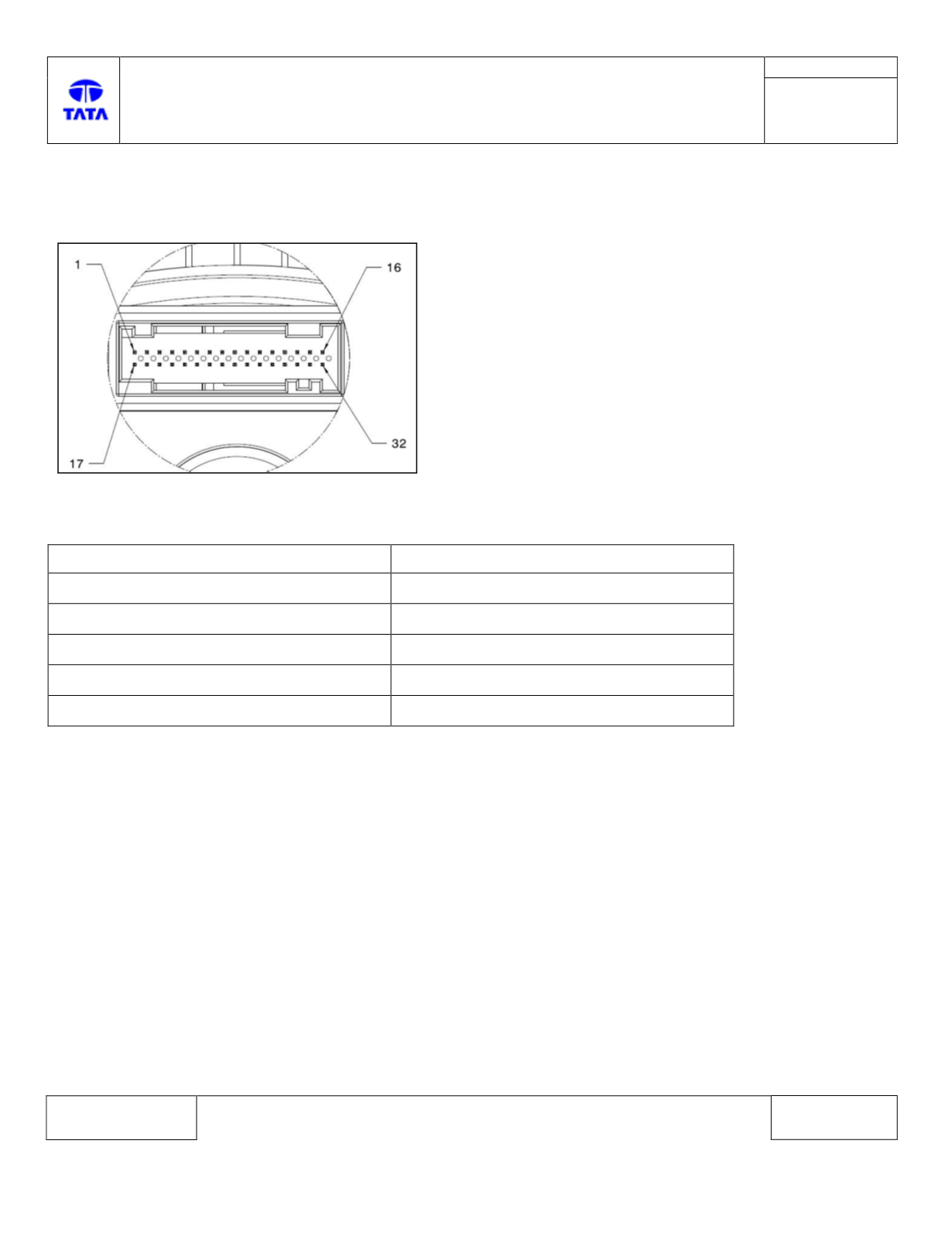

IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chasis
6
CAN_L chasis
5
Battery
1
Ignition input
22
Battery ground
24
Inspection Method:-
N.A
DTC’s confirmation:-
1. After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
2. Check whether ESCL ECU is communicating with diagnostic Tool or not.
3. DTC should not be present in ECU memory.
