Circuit Schematic Diagram:-

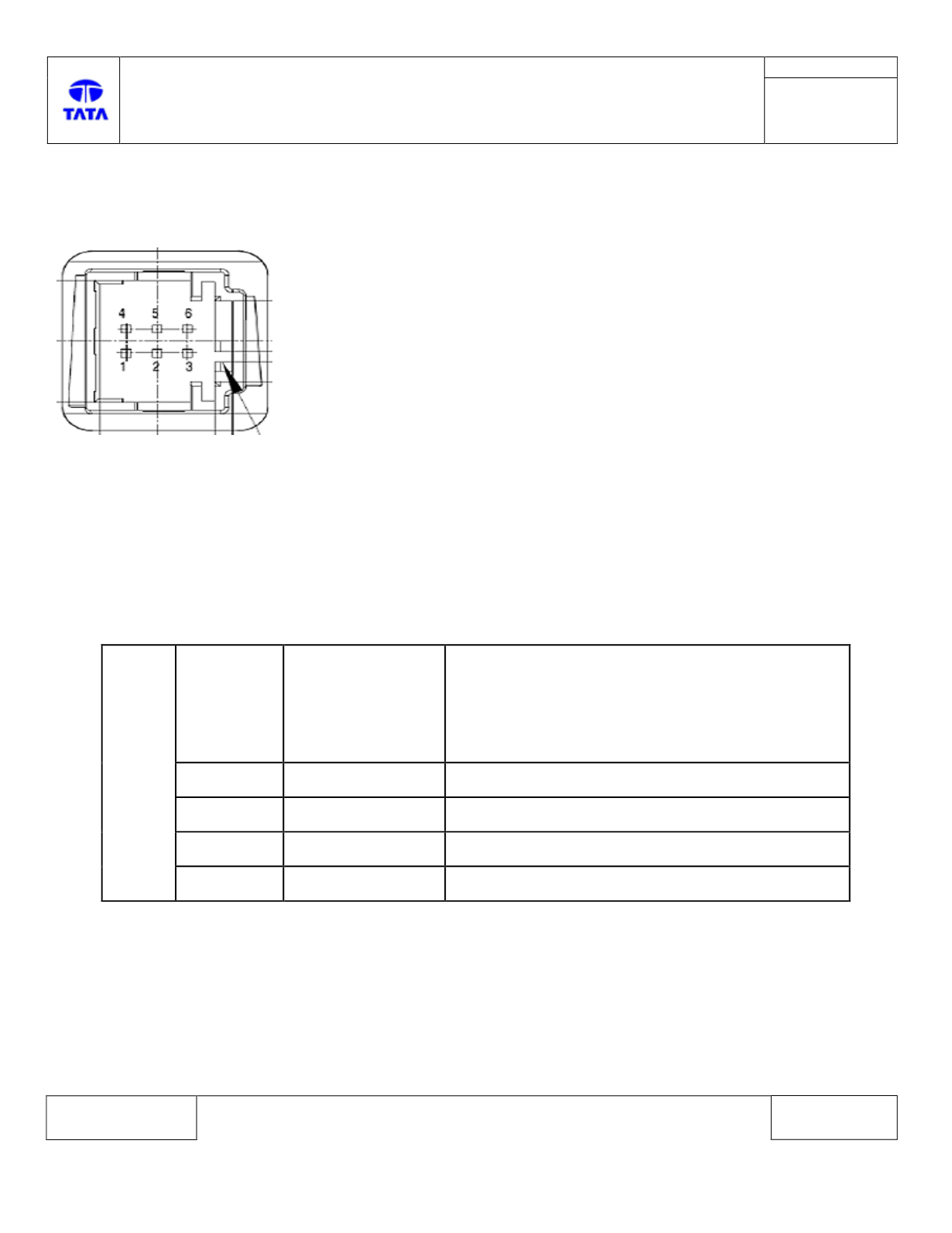

ESCL ECU side Connector:-
Component Location & Image:-
N.A
Connector Location:-
N.A
ESCL ECU Pin assignment:-
CHAMBER A
Pin No.
Pin Name
Description
2
CAN_H
CAN High
3
CAN_L
CAN Low
1
Vbat
Supply Voltage Battery
6
GND
Power GND
