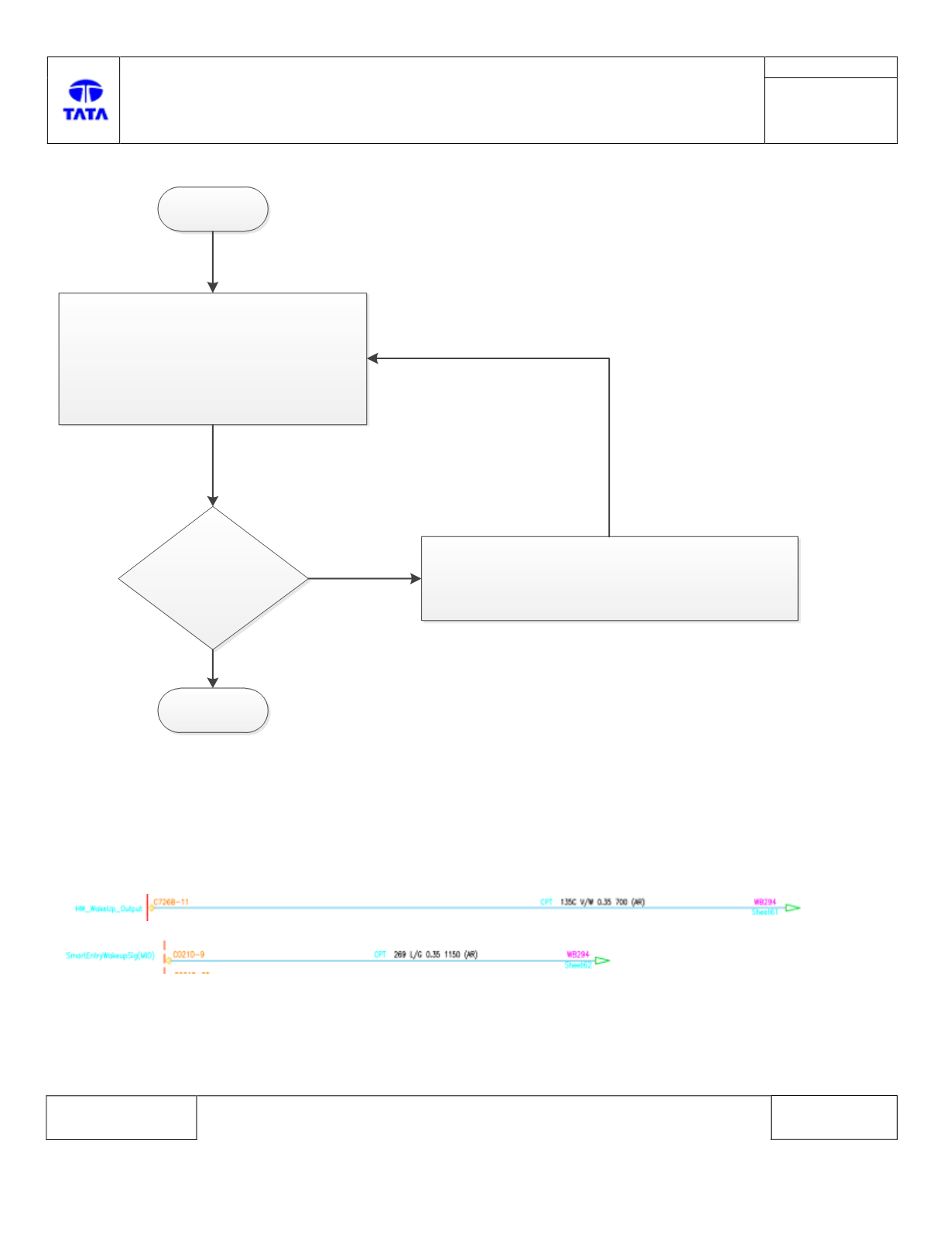

Trouble Shooting:-
Start
1. Keep vehicle in static condition.
2. Turn IGN ON.
3. Keep UID outside the vehicle.
4. Keep vehicle in OFF or ACC
power mode.
Is
DTC-131D-12
Present
?
Check & Fix for the cut & short to Battery on
the harness between wire of connector-2 /
pin-11 and BCM wake-up input.
Stop
No
Yes
DTC’s confirmation:-
1.
If short to battery fault was created on the hardwired wakeup output to BCM in OFF and Accessory power mode
along with wakeup trigger is generated in peps.
Circuit Schematic Diagram:-
