A
B

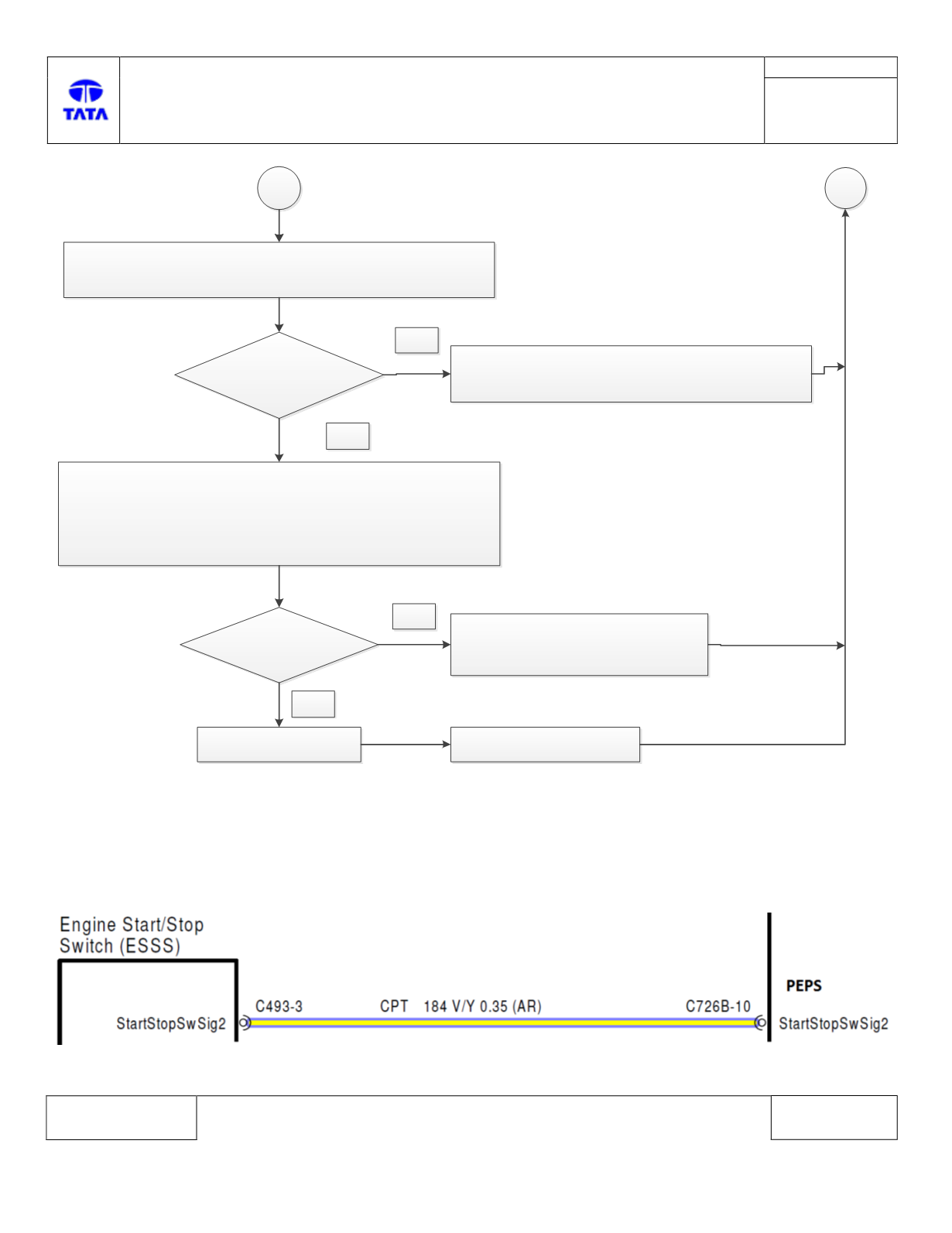

Perform the visual check of Start Stop switch
mating connectors for pin bend or damaged etc.
Is
connector
faulty?
Correct connector fault at Start stop
switch mating connector (Terminal Bend)
Yes
Disconnect Start/stop switch & check continuity
between terminal
[Pin no.3]
and terminal
[Pin no.
4]
of Start stop switch connector.
(Please refer the Start stop switch drawings)
No
Continuity
Found?
1. Start stop switch is faulty
2. Replace Start stop switch
Yes
PEPS ECU Faulty
No
Replace PEPS ECU
DTC’s confirmation:-
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
a) DTC B101B – 23 is not logged.
Circuit Schematic Diagram:-
Note: -
For detailed information please refer latest PEPS wiring harness schematic.
