X2 Eagle
ESP DTC Troubleshooting Data
Version: 1.0
Date: 23-Oct-15
Author: ERC, Chassis E&E CoC
Page: 133 of 224
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Trouble Shooting:
DTC’s healing confirmation:
If the ABS/ESP lamp on Instrument Cluster goes OFF, DTC is healed. DTC might still be present in the history and can be
cleared.
Circuit Schematic Diagram:
Please refer t
o Annex 1.
Component/Connector Location & Image:
Please refer to
Annex 3 .Connector View & Information:
Please refer to
Annex 2 .Inspection Method:
N.A.

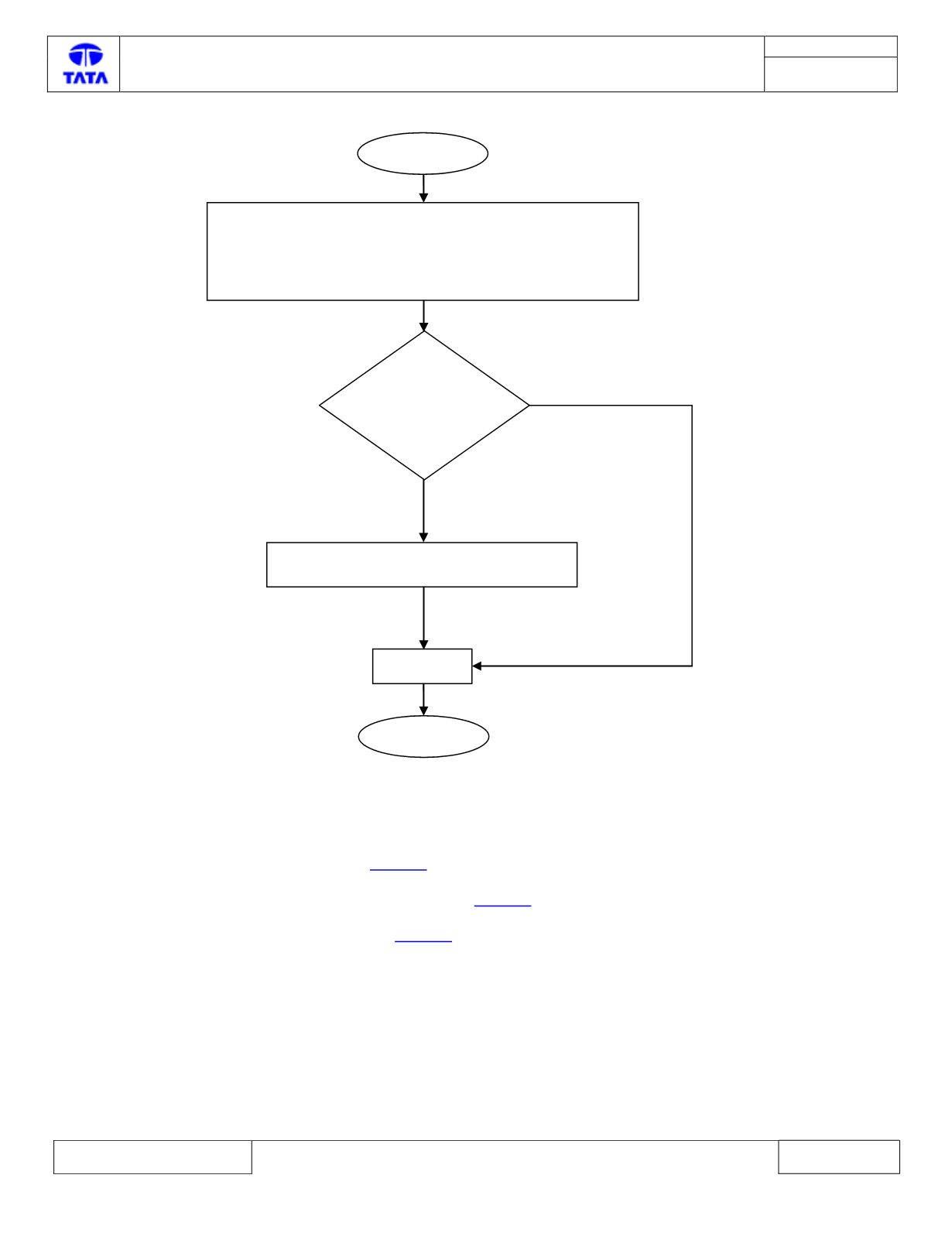

START
1. Turn OFF ignition
2. Wait for 5 seconds
3. Turn ON ignition
4. Connect the diagnostics tool and Read Logged DTCs
Is C100F - 96
logged in
current state?
Replace ABS/ESP ECU
Clear DTC
STOP
Y
N (In History)
