X2 Eagle
ESP DTC Troubleshooting Data
Version: 1.0
Date: 23-Oct-15
Author: ERC, Chassis E&E CoC
Page: 100 of 224
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

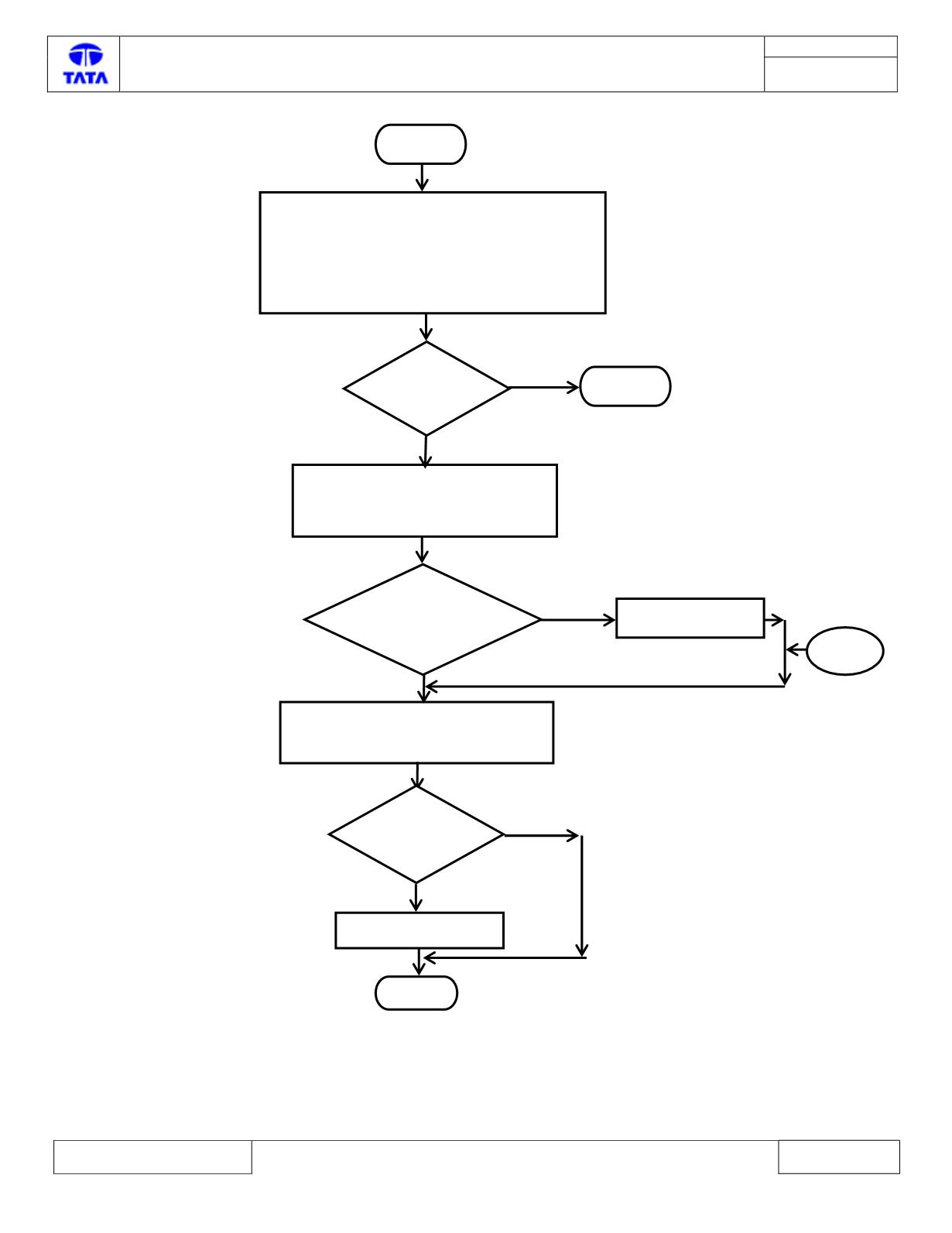

Trouble Shooting:
YES
CHECK WSS TOOTH WHEEL, WSS LAYOUT,
MOUNTING OF ECU IS AS PER ABS/ESP
INSTALLATION GUIDELINES
Yes
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C006B-06 IS PRESENT
IS EVERYTHING AS
PER GUIDELINES?
1. CLEAR THE DTC FROM THE MEMORY.
2. PERFORM IGNITION OFF/ON.
3. CHECK THE DTC
YES
NO
REPLACE THE ECU
STOP
IS DTC
PRESENT?
NO
FIX THE PROBLEM
B
