B1025–96: Implausible indication of Latch Position switch – component internal failure
Overview:
ISO Code (DTC Code)
B1025-96
Customer Symptom
ESCL unable to lock steering wheel.
Fault Effects (On Vehicle)
ESCL unable to lock steering wheel.
Lamp Status (If Any)
NA
Fault Detection Condition
This fault gets log when ESCL unable to confirm latch position switch due to
ESCL internal hardware failure.
Normal Operating Condition
This fault shall not log during ESCL locking and unlocking.
Probable Trouble Area
ESCL internal hardware failure
Healing Condition
ESCL ECU replacement
Table 22: B1025-96 overview details
Component Details:
ESCL ECU is located on steering column behind steering wheel. ESCL ECU locks and unlocks the steering wheel based
on CAN messages received from PEPS, EMS, ABS and BCM.
Preliminary Checks:
1. Check Battery Voltage (9V-16V).
2. Check EMS, PEPS, BCM and ABS ECU’s signals are available on CAN bus by confirming that ABS, EMS, BCM
and PEPS related DTCs are not available in ESCL.

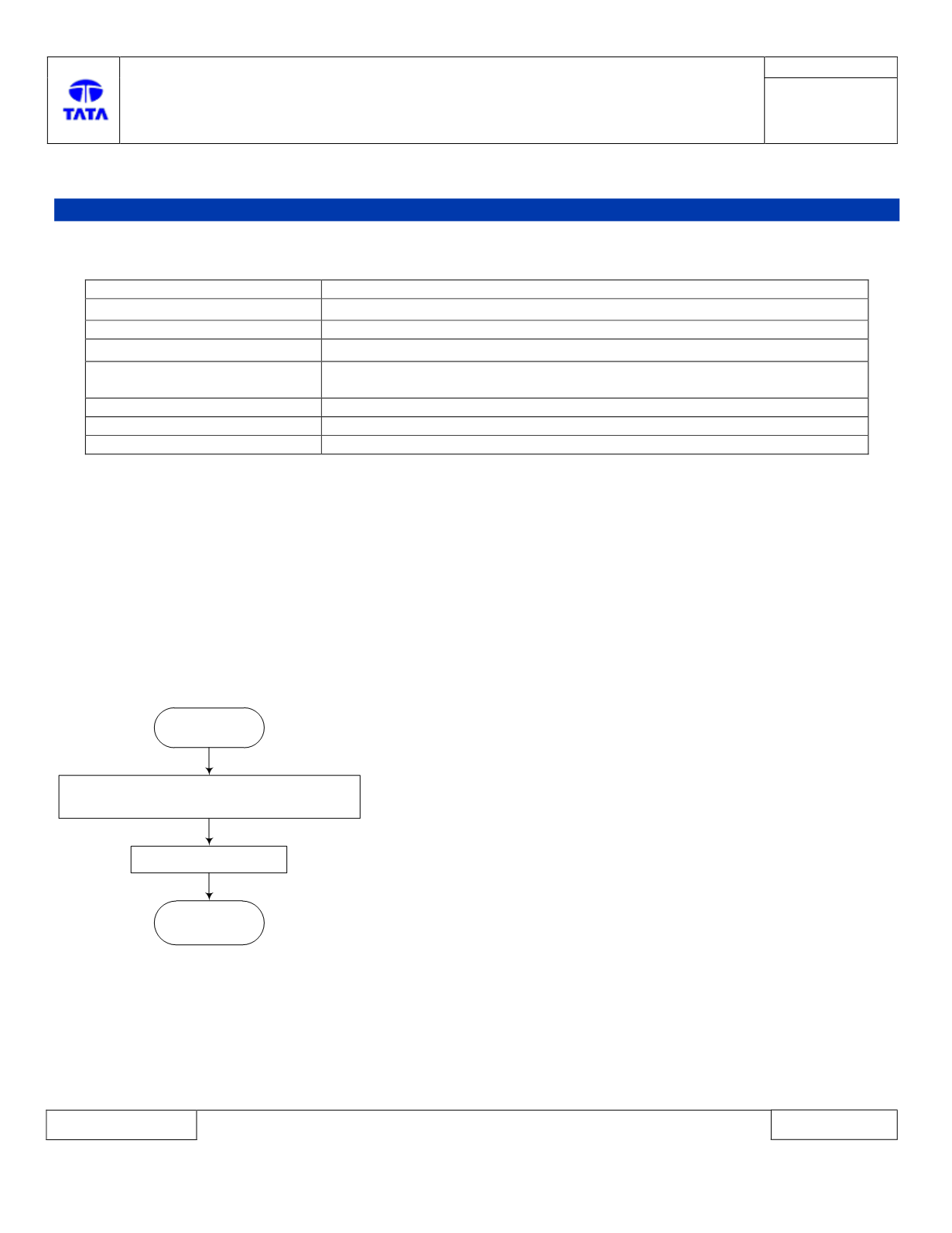

Troubleshooting:
Start
Stop
1. Keep vehicle in static condition.
2. Turn ignition ON -> OFF
Replace ESCL ECU
Note
: Refer ESCL ECU replacement procedure doc to replace ESCL ECU.
DTC’s confirmation:
After rectification, ensure the following points by using TML diagnostic tool before handling over to customer.
1. Switch IGN ON -> OFF.
2. Press Lock button on UID or Driver door close to open.
3. Switch IGN OFF->ON and read DTC. ESCL shall not log B1025-96.
Circuit Schematic Diagram:
