Vehicle Platform: NEXON
ECU Name: ESCL
DTC Troubleshooting Data
Version: 1.4
Date: 09 Jan 2018
Author: Hitesh Kaneria
Page: 46 of 88
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

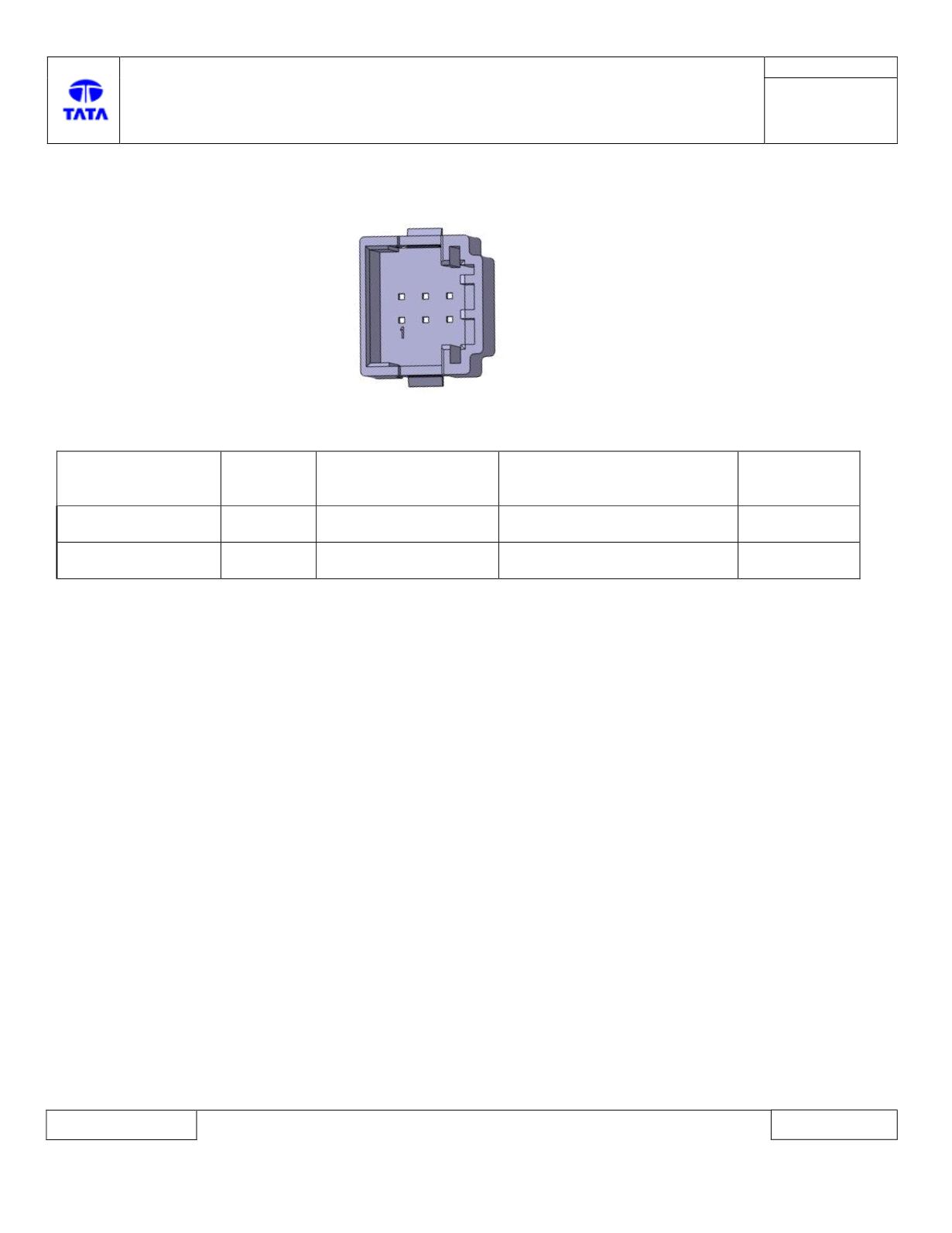

Connector View & Information:
Connector Number
Pin
number
Signal Name
Signal Description
Signal type
(Select from
drop down)
1
1
Batt_Supply_+12v
ESCL is permanently supplied
by Batt_Supply
Power
1
6
GND-2_+12v
ESCL is permanently supplied
by Batt_Supply
Gnd
Inspection Method:
NA
