Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 261 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

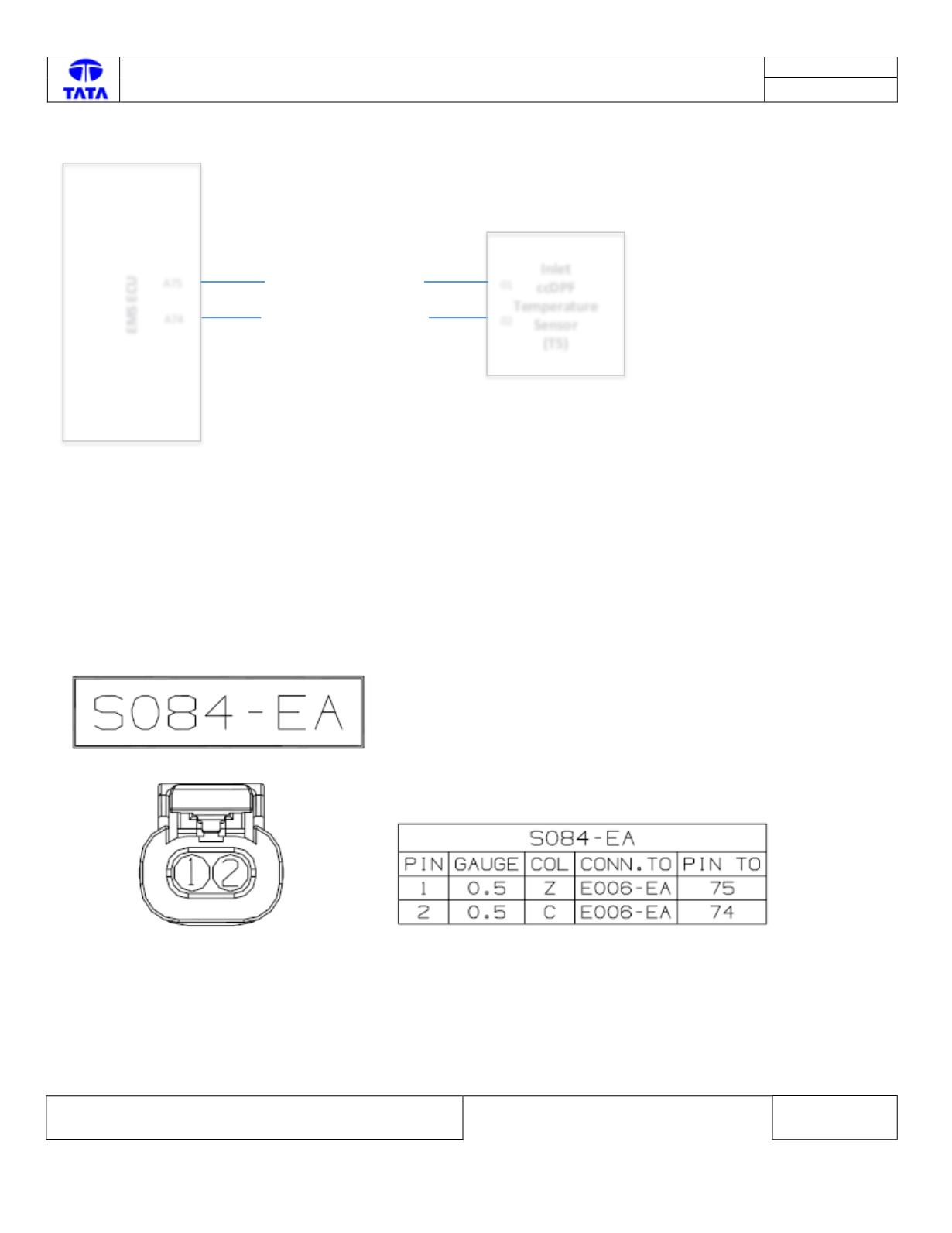

Circuit Schematic:
EMS ECU
Inlet PMcat Temp Sensor Ground
A74
Inlet
ccDPF
Temperature
Sensor
(T5)
02
Inlet PMcat Temp Sensor Signal
A75
01
Component Location & Image:-
NA
Connector View & Information: -
