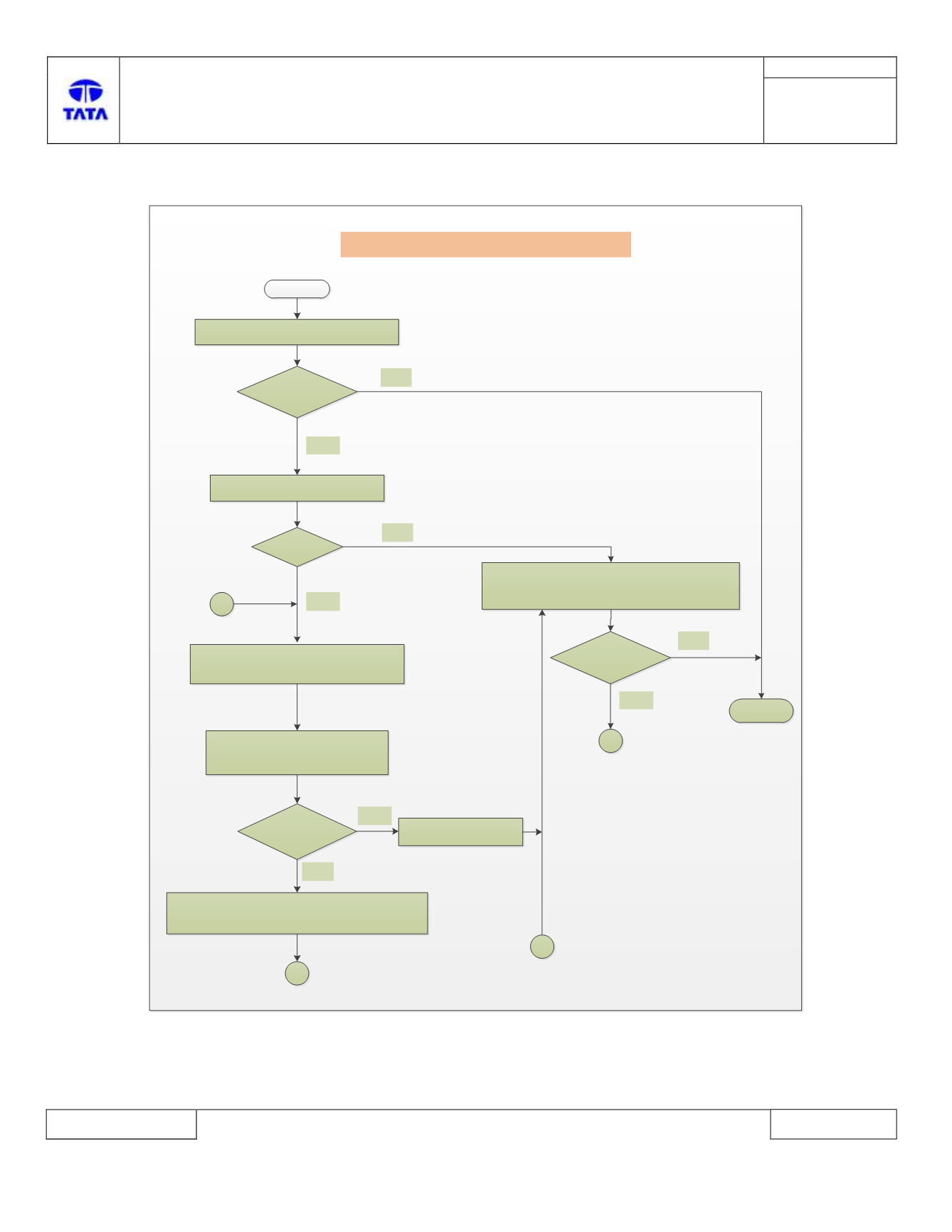

B2268– 11 : Rear Right Turn Indicator LEDs – circuit short to ground
Start
Connect the Diagnostic Tool and check for DTCs
Is DTC B2268 – 11
present?
STOP
NO
Check DTC present is Current or history
YES
History?
1. Clear the DTC from memory.
2. Turn the IGN to OFF.
3. Start the IGN.
4. Check for DTCs.
YES
Is DTC B2268 – 11
present?
C
Check BCM and Rear right turn
indicator LED connectors for terminal
backout
NO
C
Are connectors loose?
Reconnect connectors firmly
B
1. Remove BCM side wiring harness connector.
2. Perform visual check of connectors for pins bend or
damaged etc.
A
NO
YES
YES
NO
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
