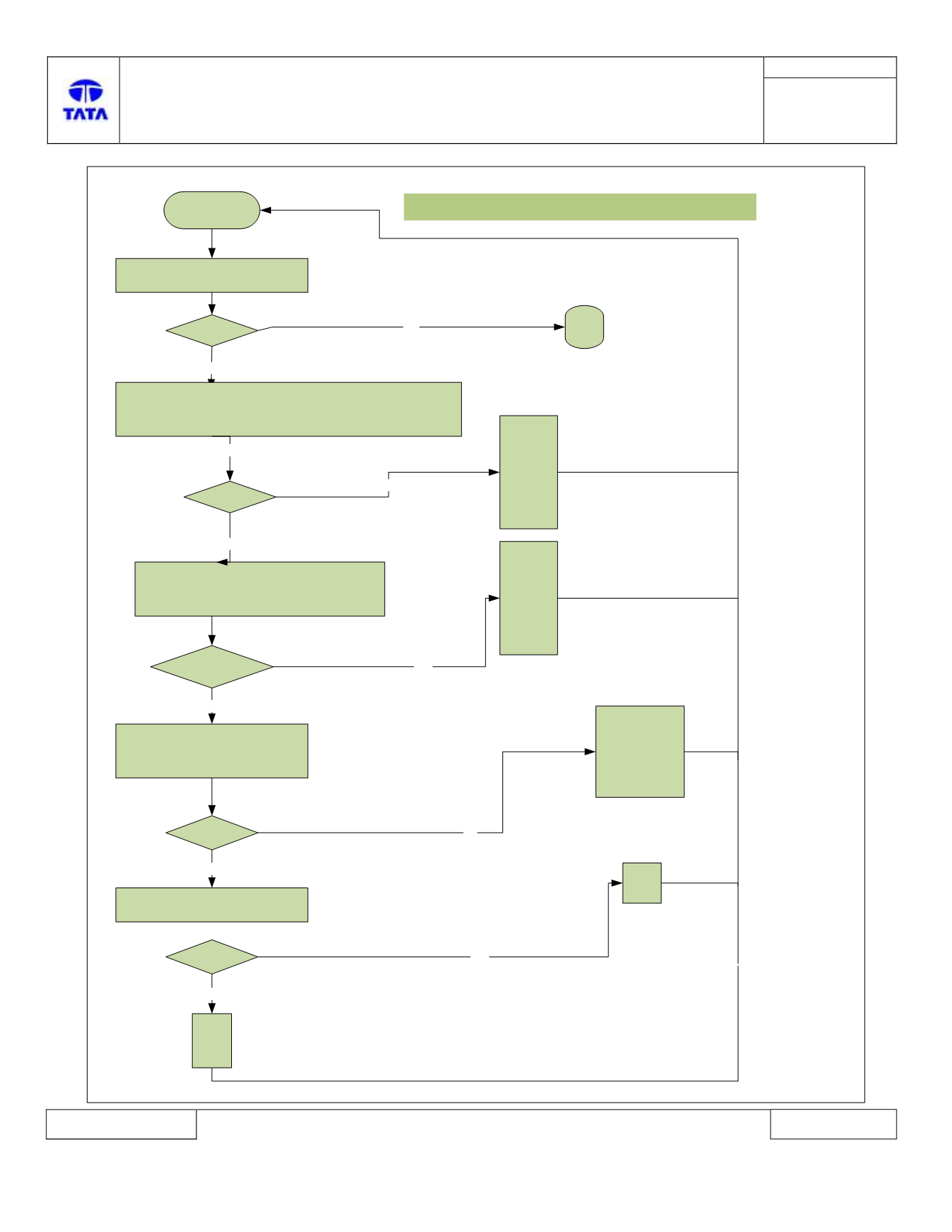

Normal vehicle
setup
start
Connect Diagnostic tool and Read
DTC. Switch ON front wash and read
DTC.
Is DTC
B220B-11
NO
YES
Stop
Remove Vehicle Battery connections.
(Please follow safety guidelines)
1) Remove BCM connector and check for backout/ pins bend/
damages.
Yes
YES
Check continuity between
1) BCM connector B pin 7 and body GND in the
harness connector.
2) BCM connector B pin 7 and Conn A pin 34/ 47
Yes
Correct the wiring
harness short and open
circuit reconnect the
vehicle battery and
BCM
Remove the Washer motor connector
and check for continuity from
connector B pin 7 to Wash motor conn
pin1.
Is continuity
observed
Yes
No
Correct the wiring
harness short/
open circuit and
reconnect the
vehicle battery and
BCM
Check continuity between front wash
motor pin1 and pin2
Yes
Replac
e the
motor
No
Any fault
observed
Correct the fault
No
Any continuity
observed
No
Is continuity
observed
B220B-11 Front washer short to GND
Replac
e the
ECU
