1. Remove Combi switch mating connector
2. Perform visual check of connectors for pin bend or damaged etc.
Connector
Faulty?
Correct Connector fault
(Terminal Bend)
BCM ECU Faluty
Replace BCM ECU
YES
NO
Check if Combi switchFront wiper intermittent switch input[wiring
harness side] is shorted to ground
[pin details TBD].
Correct combi switch side wiring harness
(Short to Ground)
Check if combi switch is faulty /Shorted to other terminals
of combi switch or shorted to ground pin terminal
[pin /
terminal details of combi switch TBD]
Switch Faulty?
Replace combi switch
1.Remove all BCM connectors
2.Take out Front wiper Intermittent Speed input wire
[C1-25]
from BCM connector
3.Reconnect all connectors
4.Check if Front wiper low speed wipe is ON?
Front wiper Intermittent
speed continuously ON?
Reconnect all connectors firmly
YES
NO
YES
NO
Continuity Found?
YES
NO
A
B

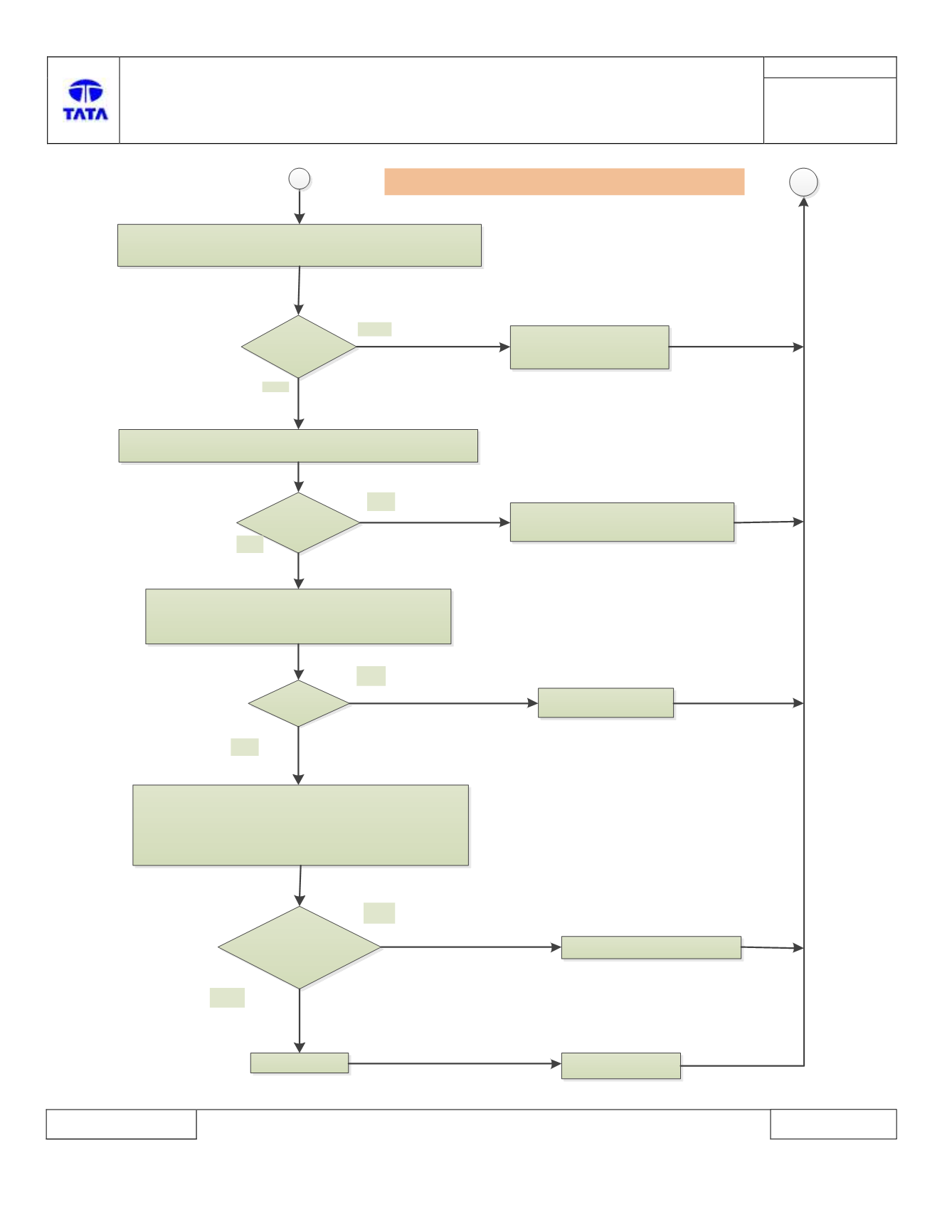

B2211 -11: Front Wiper Intermittent Speed Switch - circuit short to
ground
