Is connector faulty?
Correct connector fault
(Terminals Bend)
YES
Check continuity between BCM connector pin
[ C1-24
] and
BCM ground
[C1-34/C1-47]
Continuity
found?
Correct BCM side wiring
harness
( Short to Ground)
YES
1. Remove Front washer switch mating connector
2. Perform the visual check of connectors for pin bend or
damaged etc.
Is connector faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Check continuity between two terminals of Front
Washer switch
Continuity found?
BCM ECU Faulty
Replace BCM ECU
Check continuity between Front Washer switch terminal
[pin details TBD]
and ground
[ground details TBD]
NO
NO
NO
YES
A
B

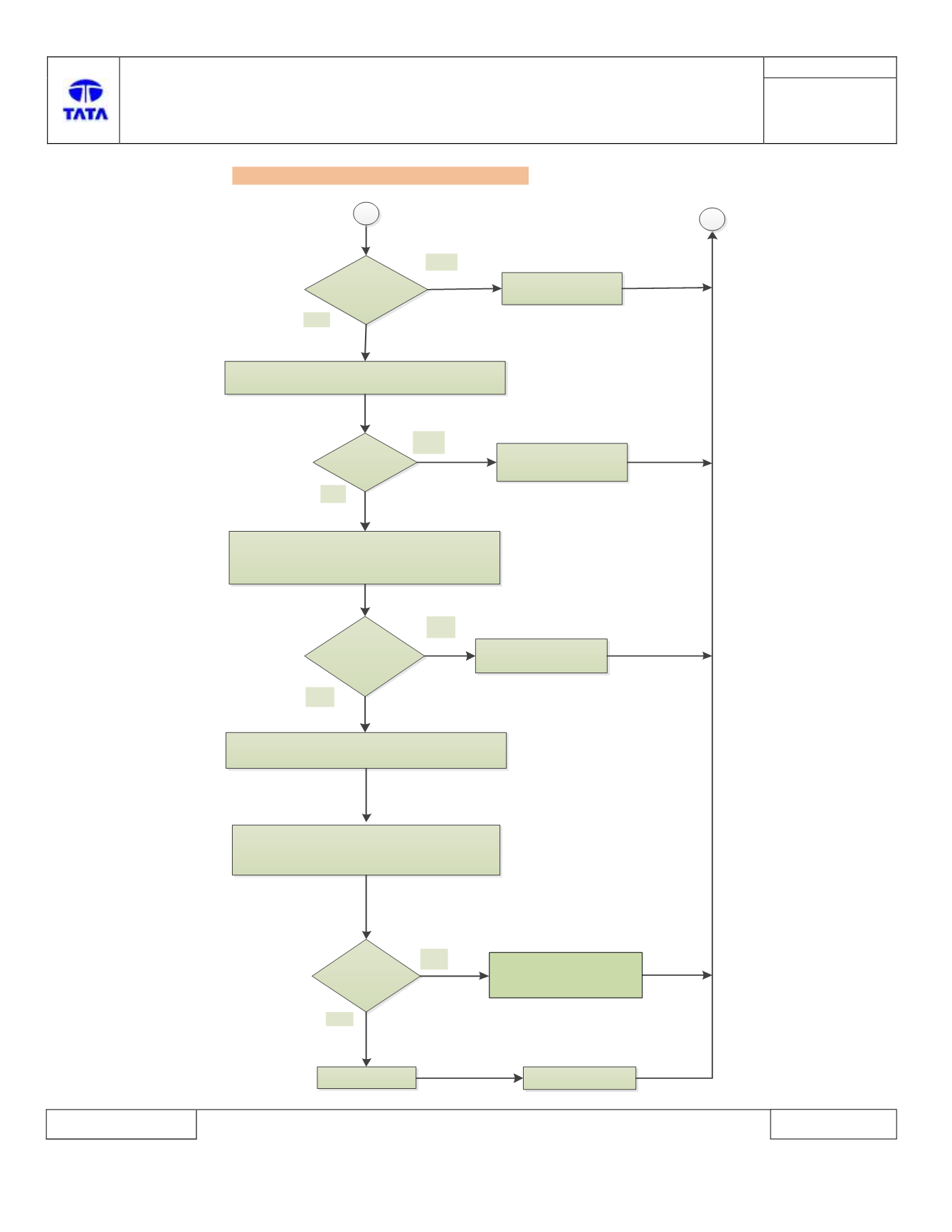

B220C – 23: Front Washer Switch – Signal Stuck Low
1. Switch is faulty
2. Replace combi switch
