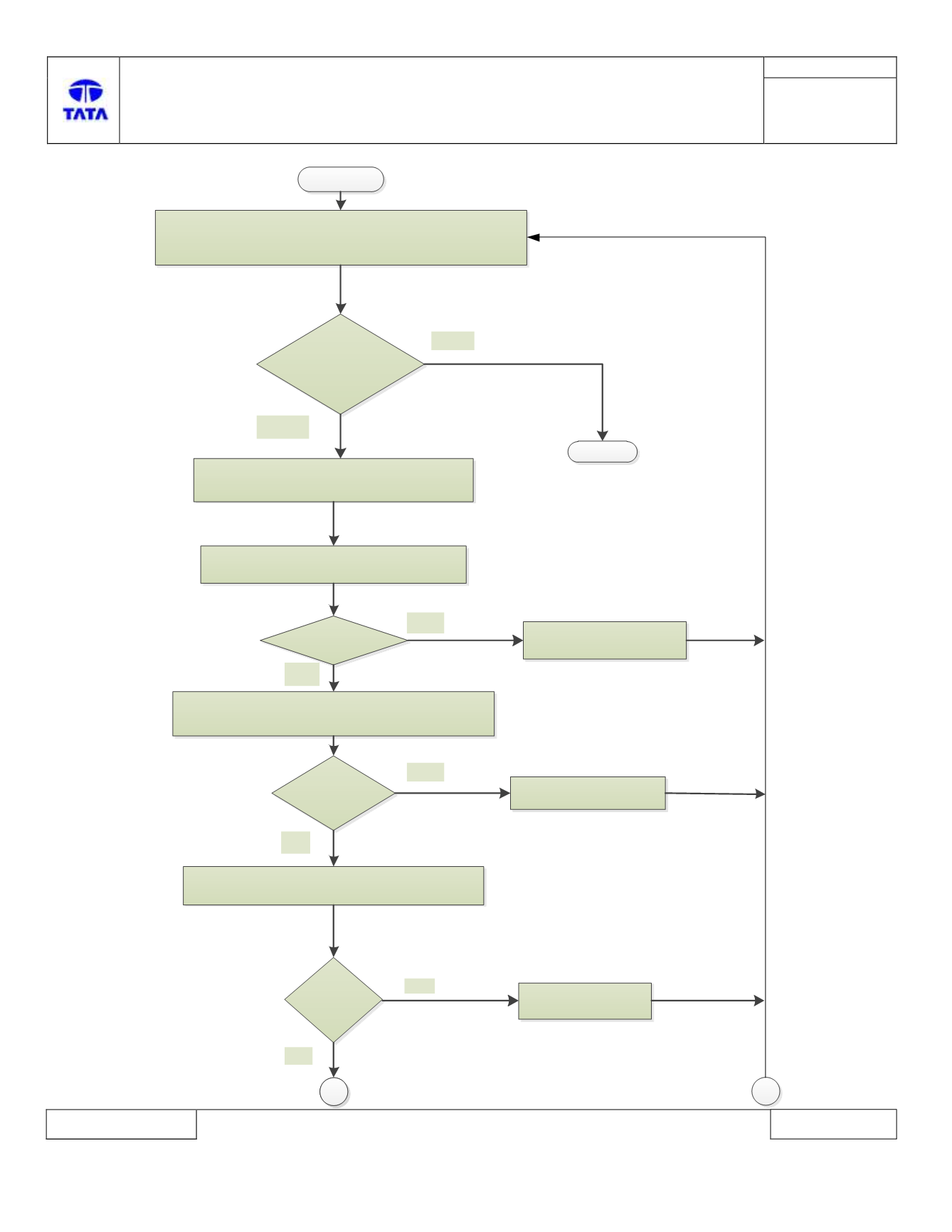

START
Connect Diagnostic tool and Run Input Test Routine and operate the
switches as mentioned in the input switch test routine specification.
Is DTC U100F-11 logged
by Routine?
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check BCM and Ignition switch connectors for
terminal back out
Are connectors loose?
Reconnect connectors firmly
YES
NO
1.Remove BCM Connector.
2.Perform visual check of connectors for pins bent or
damaged etc.
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Check Fuse ( Ignition Power mode Input fuse)
[fuse
details TBD]
Fuse Blown?
Replace the Fuse
YES
NO
STOP
YES
NO
A
B
