Trouble Shooting:

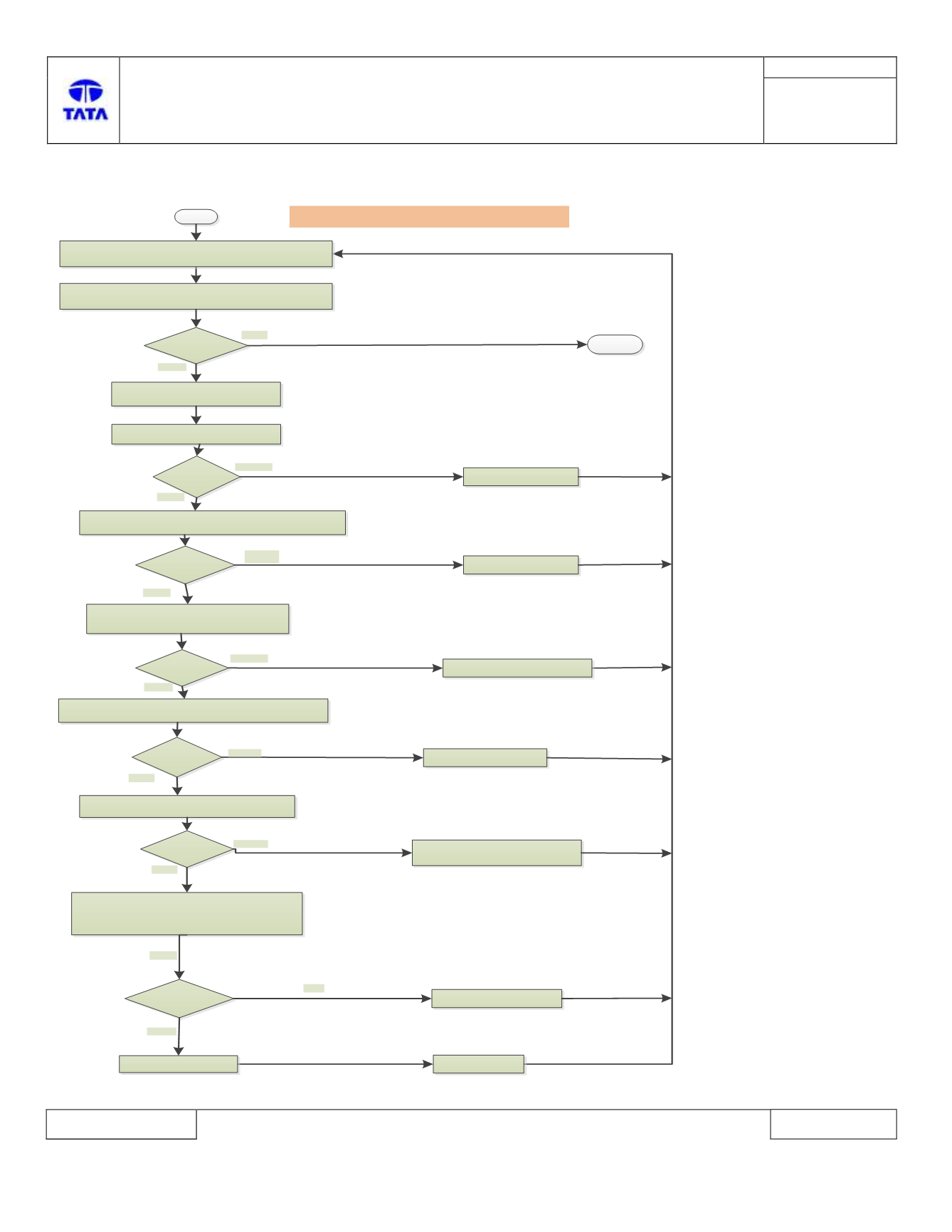

B130D - 11: Right Rear Door Ajar Switch - Circuit Short to
Ground
START
Connect Diagnostic tool and Run Input Test Routine and operate the
switches as mentioned in the input switch test routine specification.
Is DTC B130D – 11
logged by Routine?
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check connection between BCM and Rear
Right door switch
Are connectors
loose?
Correct connector fault
(Terminals Bend)
1.Remove BCM Connector.
2.Perform visual check of connectors for pins bent or damaged
Is connector faulty?
STOP
1. Close all doors
2. Check continuity between BCM connector pin
[C4-5]
Harness side) with Ground
[C1-34/C1-47]
Continuity Found?
1. Remove Rear Right Door Switch mating connector
2.Perform visual check of connectors for pin bend or damaged etc.
Reconnect connectors firmly
Connector
Faulty?
Correct Connector fault
(Terminal Bend)
NO
YES
YES
NO
YES
YES
YES
NO
NO
NO
Check if Rear Right door switch input[wiring harness
side] is shorted to ground
[C105-1].
Correct Rear Right door switch side
wiring harness
(Short to Ground)
1. Close and Open the Rear Right door
2. Check if Rear Right Door switch is operating?
Is Rear Right Door
switch is operating?
Reconnect all connectors firmly
NO
YES
Correct BCM side wiring harness
( Short to Ground)
Continuity Found?
YES
NO
NO
Connect battery and other connectors of BCM ECU, if disconnected.
BCM ECU Faulty
Replace BCM ECU
