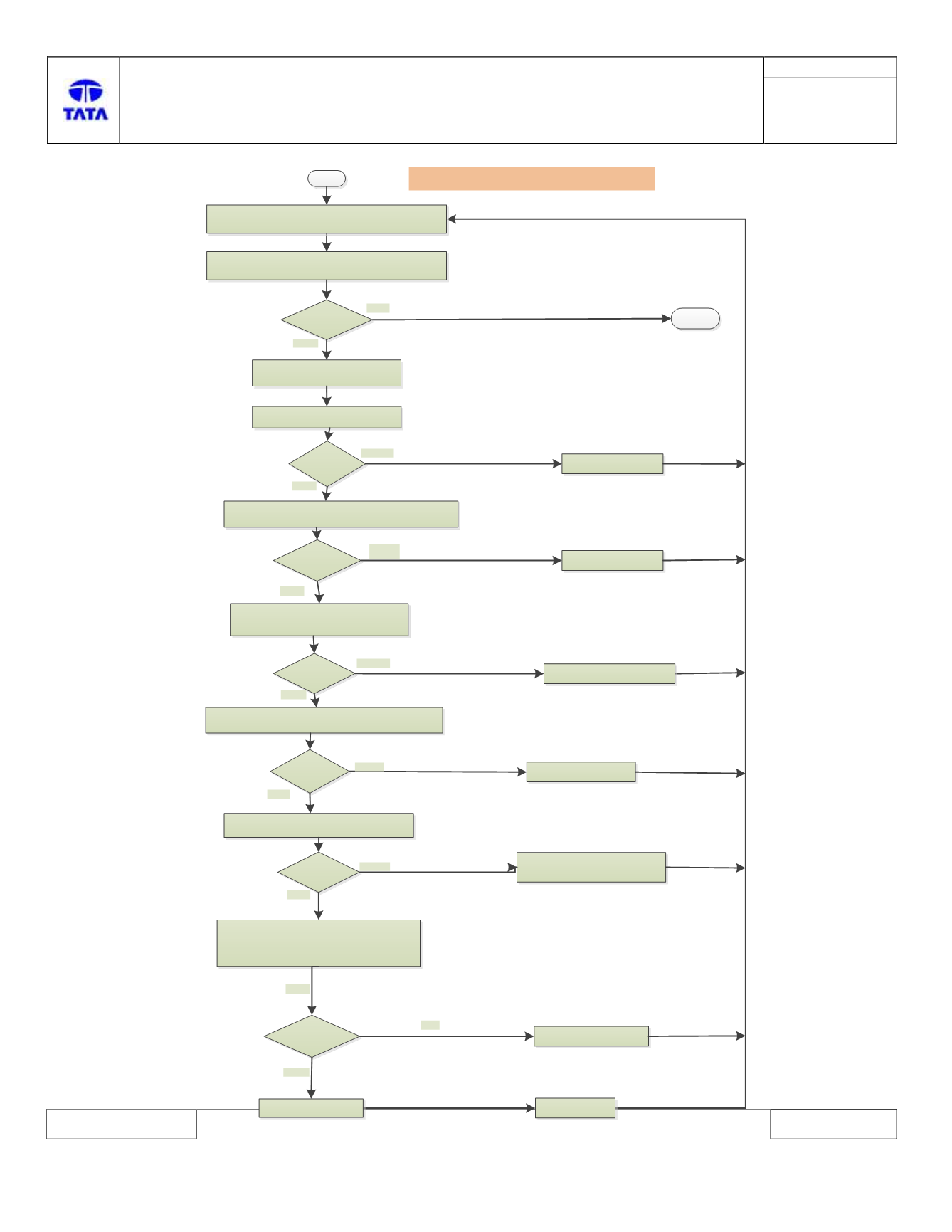

Trouble Shooting:
B1308 - 11: Passenger Door Ajar Switch - Circuit Short to
Ground
START
Connect Diagnostic tool and Run Input Test Routine and operate the
switches as mentioned in the input switch test routine specification.
Is DTC B1308 – 11
logged by Routine?
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check connection between BCM and
Passenger door switch
Are connectors
loose?
Correct connector fault
(Terminals Bend)
1.Remove BCM Connector.
2.Perform visual check of connectors for pins bent or damaged
Is connector faulty?
STOP
1. Close all doors
2. Check continuity between BCM connector pin
[C1-14]
Harness side) with Ground
[C1-34/C1-47]
Continuity Found?
1. Remove Passenger Door Switch mating connector
2.Perform visual check of connectors for pin bend or damaged
Reconnect connectors firmly
Connector
Faulty?
Correct Connector fault
(Terminal Bend)
NO
YES
YES
NO
YES
YES
YES
NO
NO
NO
Check if Passenger door switch input[wiring harness
side] is shorted to ground
[C102-1].
Correct
Passenger door switch side
wiring harness
(Short to Ground)
1. Close and Open the Passenger door
2. Check if Passenger Door switch is operating?
Is Passenger Door
switch is operating?
Reconnect all connectors firmly
NO
YES
Correct BCM side wiring harness
( Short to Ground)
Continuity Found?
YES
NO
NO
Connect battery and other connectors of BCM ECU, if disconnected.
BCM ECU Faulty
Replace BCM ECU
