BCM ECU Faulty
Replace BCM ECU
1.Take out left reverse lamp bulb.
Continuity
found?
Correct BCM side wiring harness
(Short To Ground)
YES
Check countinuty between BCM connector pin
[C2-
11]
and BCM ground pin
[ C1-34]
1.Remove left reverse lamp mating connector
2. Perform the visual check of connectors for pin
bend or damaged etc.
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Check continuity between two terminals of left
reverse lamp
Continuity
found?
1. Lamp is faulty
2. Replace left reverse lamp
NO
YES
NO
A
B

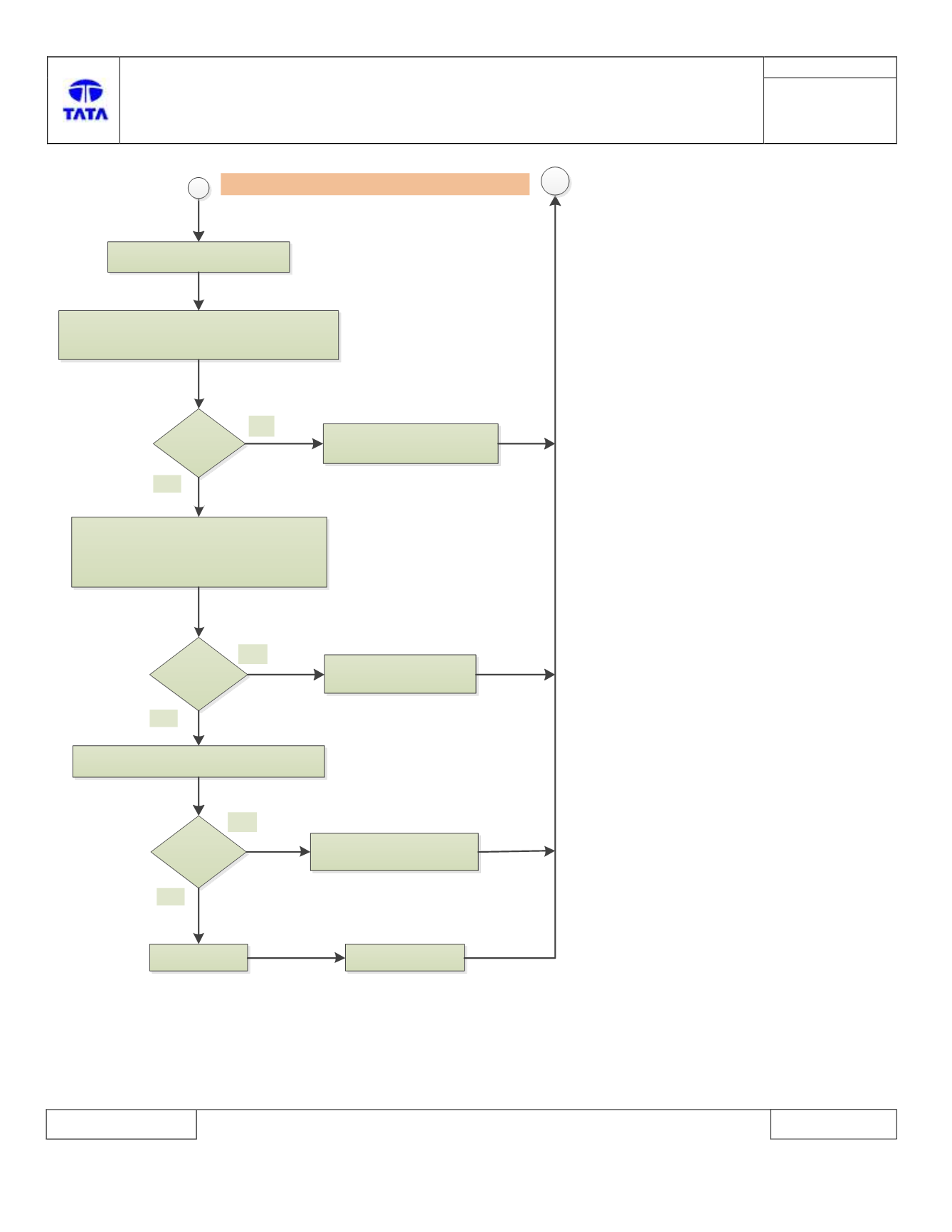

B225E – 11: Left reverse Lamp circuit –Short To Ground
