BCM ECU Faulty
Replace BCM ECU
1.Take out right front fog lamp bulb.
Continuity
found?
Correct BCM side wiring harness
(Short To Ground)
YES
Check countinuty between BCM connector pin
[C2-
19]
and BCM ground pin
[ C1-34]
1.Remove right front fog lamp mating connector
2. Perform the visual check of connectors for pin
bend or damaged etc.
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Check continuity between two terminals of
right front fog lamp
Continuity
found?
1. Lamp is faulty
2. Replace right front fog lamp
NO
YES
NO
A
B

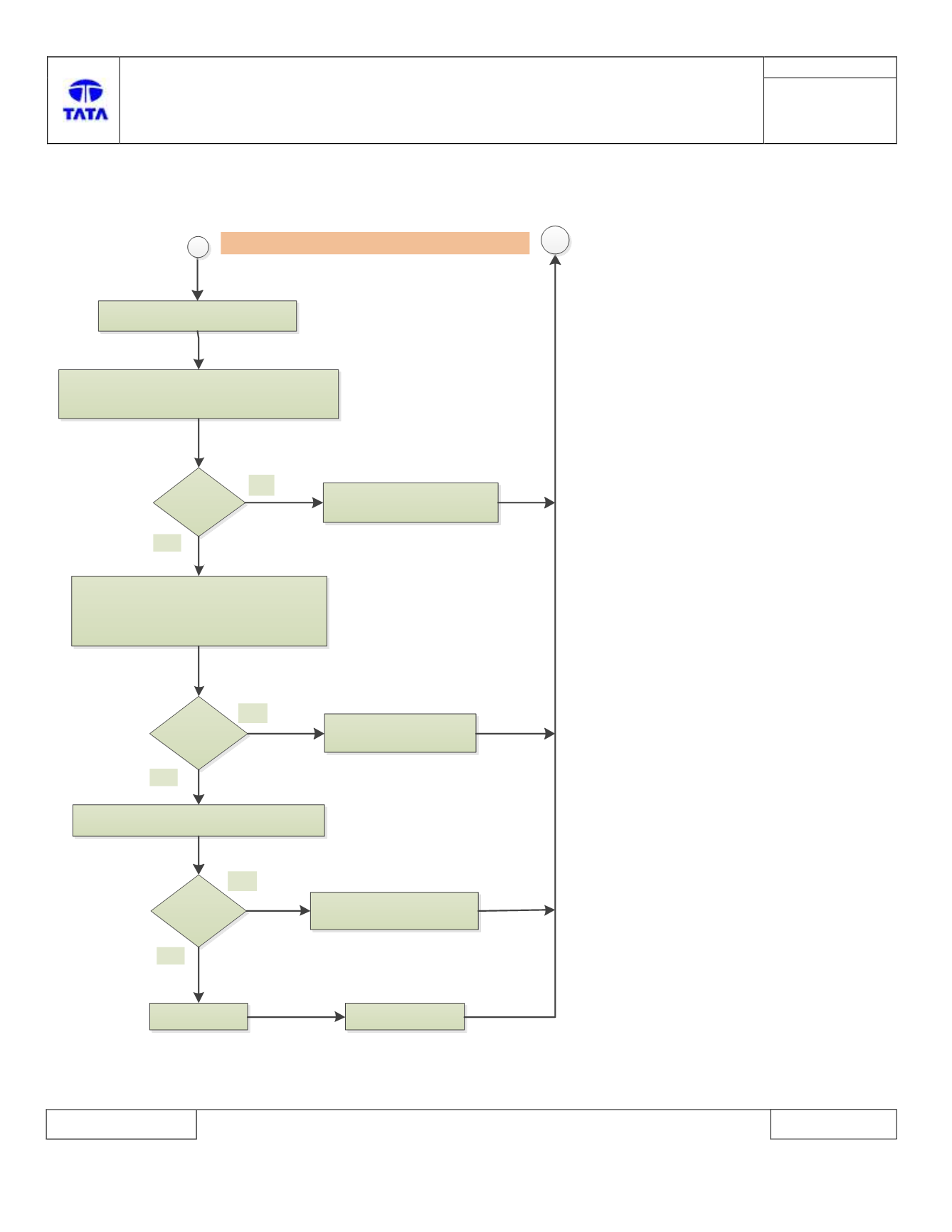

B2242 – 11: Right front fog Lamp circuit –Short To Ground
