Vehicle Platform: OSPREY
ECU Name: Hella Body Control Module (BCM) DTC
Troubleshooting Data
Version: 1.4
Date: 15 May 2018
Author: Body CoC
Page: 154 of 855
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
BCM ECU Faulty
Replace BCM ECU
1.Take out High Beam bulb.
Continuity
found?
Correct BCM side wiring harness
(Short To Ground)
YES
Check countinuty between BCM connector pin
[C4-
40]
and BCM ground pin
[ C1-34/ C1-47]
1.Remove High Beam mating connector
2. Perform the visual check of connectors for pin
bend or damaged etc.
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Check continuity between two terminals of
High Beam lamp
Continuity
found?
1. Lamp is faulty
2. Replace High Beam Lamp
NO
YES
NO
A
B

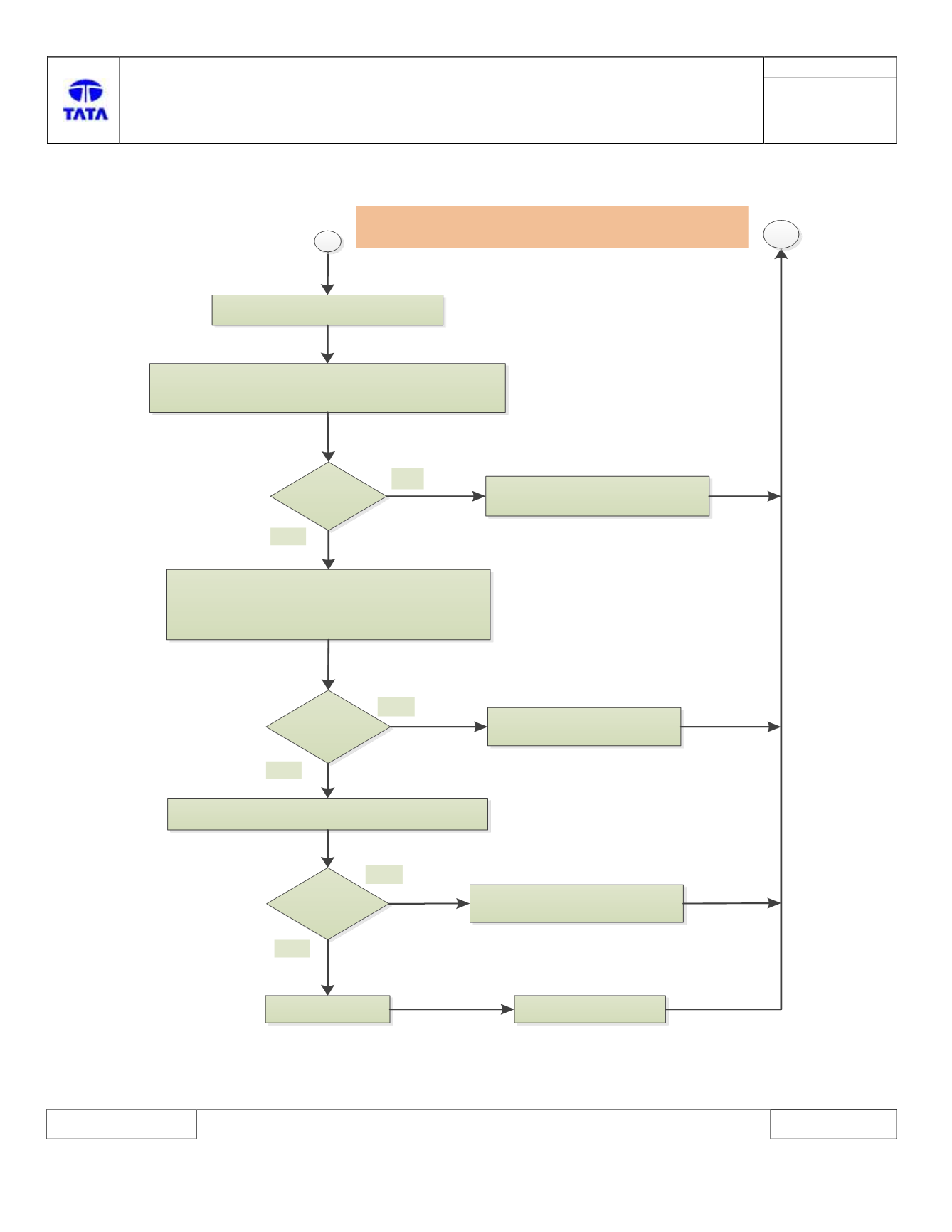

B2204 - 11: Combined High Beam Circuit –Short To
Ground
