Trouble Shooting:
Step Checks
IF YES
IF NO
1.
Check whether the EMS ECU is receiving supply and
Ground
Go to step 2
Rectify wiring
harness
connections as
per schematic
2. Check DPF sensor electrical connection as per schematic
Go to step 3
Repair the failure
3.
Check the Damaged exhaust system or Leak in exhaust
system
Got to step 4
Rectify the fault
4.
Exhaust tubes to differential pressure sensor leak
Go to step 5
Rectify the fault
5. If fault still persists
Call Hotline
Repeat above
procedure for
reconfirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.
Call Hot Line and check whether the fault is rectified or not.

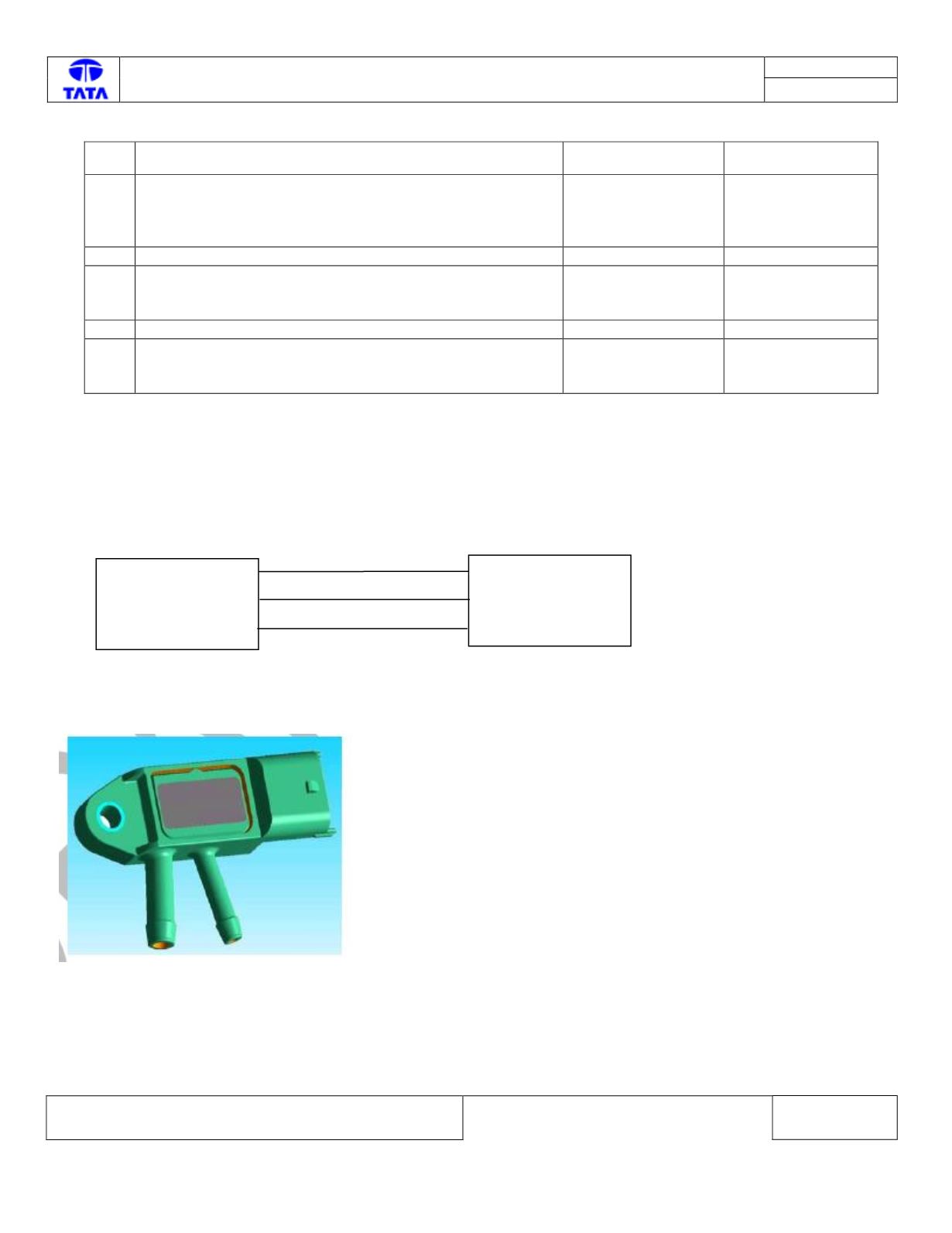

Circuit Schematic:
Component Location & Image:-
EMS ECU
DPF sensor
16
15
42
3
2
1
+5V Supply
Ground
Sensor Signal
