DTC’s confirmation:-
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
Run Input Switch Test routine, operate switches manually and check, DTC
B222E – 11 is not returned with the
Routine results.
Check main beams are turning ON and OFF

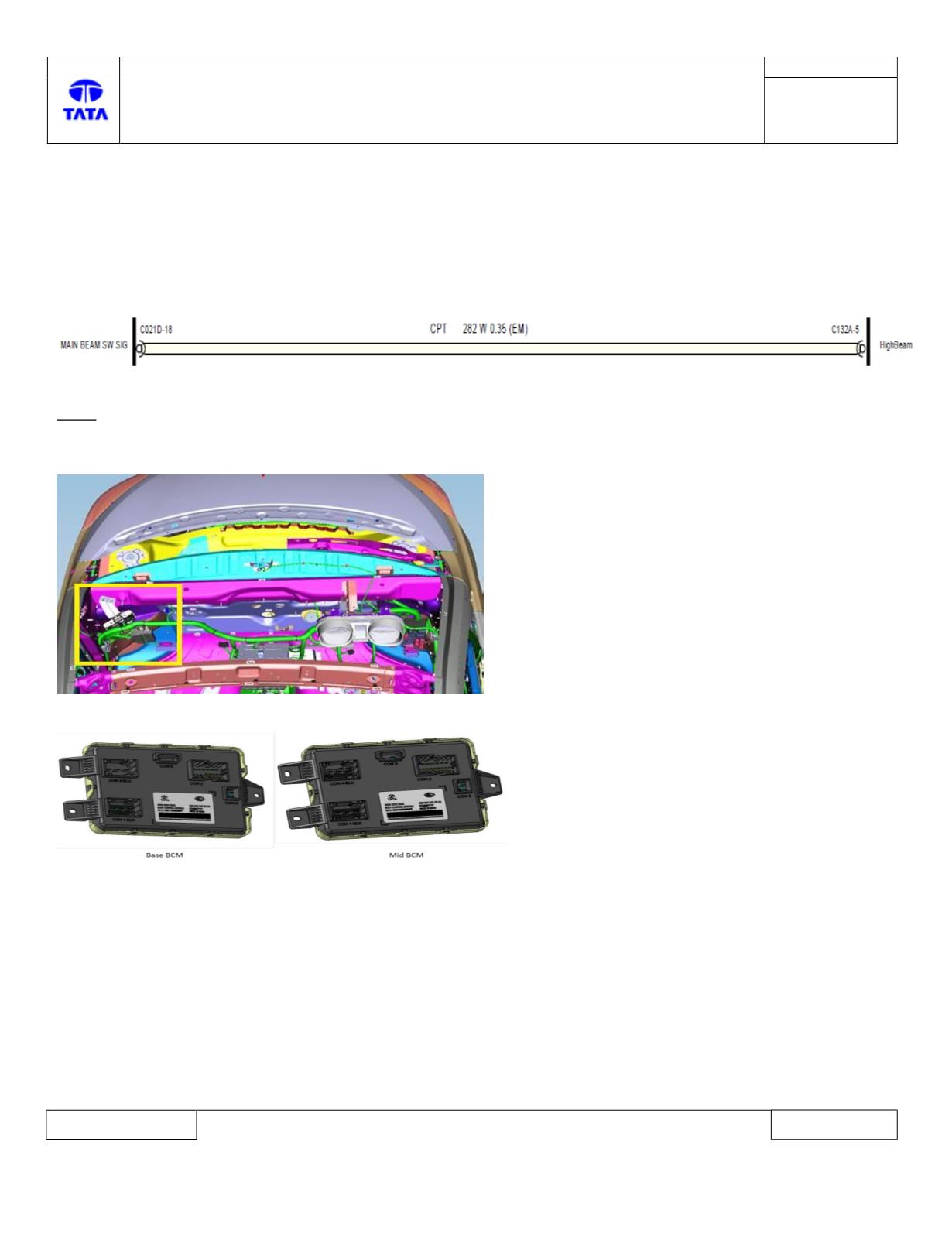

Circuit Schematic Diagram:-
Note:
For detailed information please refer latest BCM wiring harness schematic.
Component Location & Image:-
