Connector View & Information: -

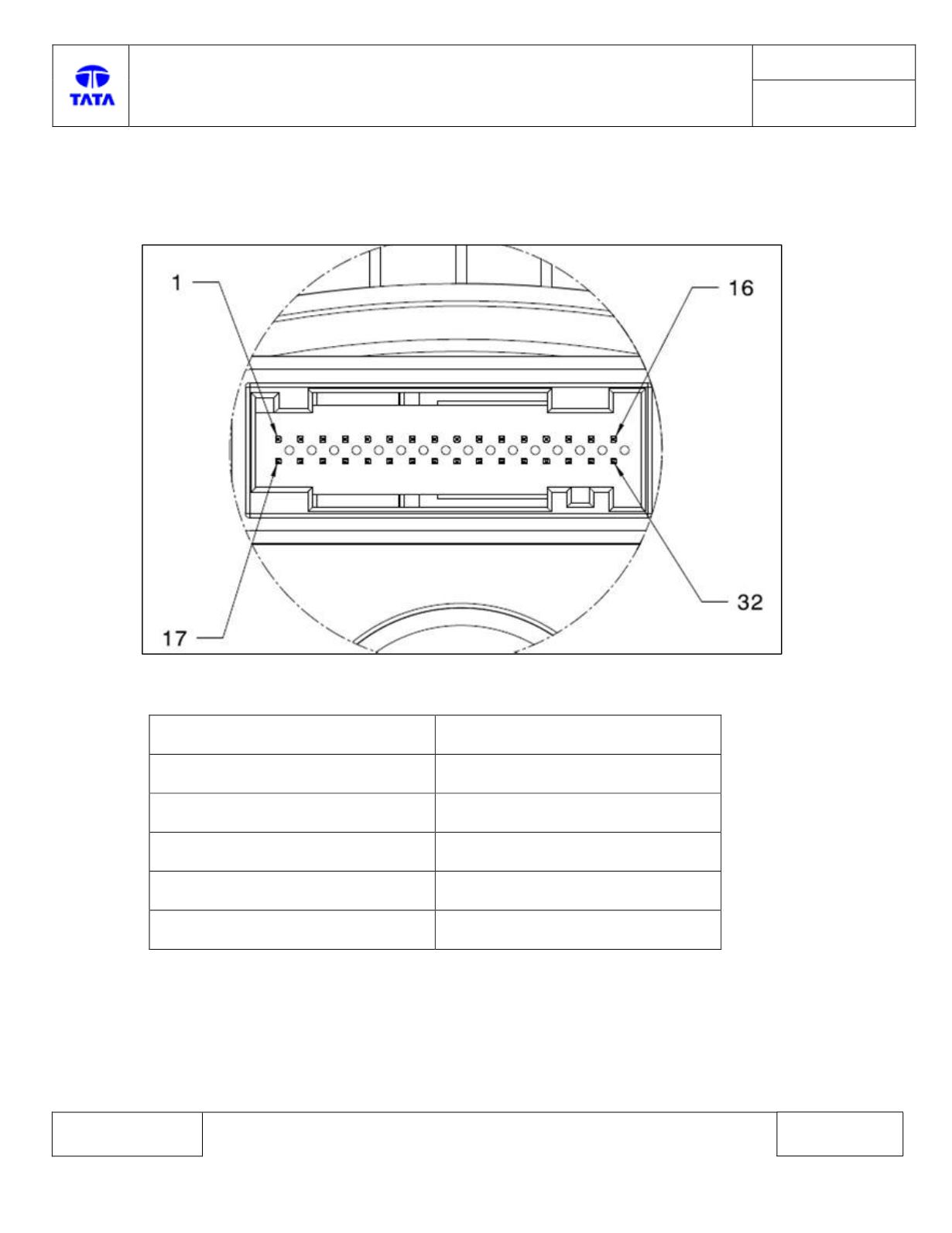

IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chasis
6
CAN_L chasis
5
Battery
1
Ignition input
22
Battery ground
24
