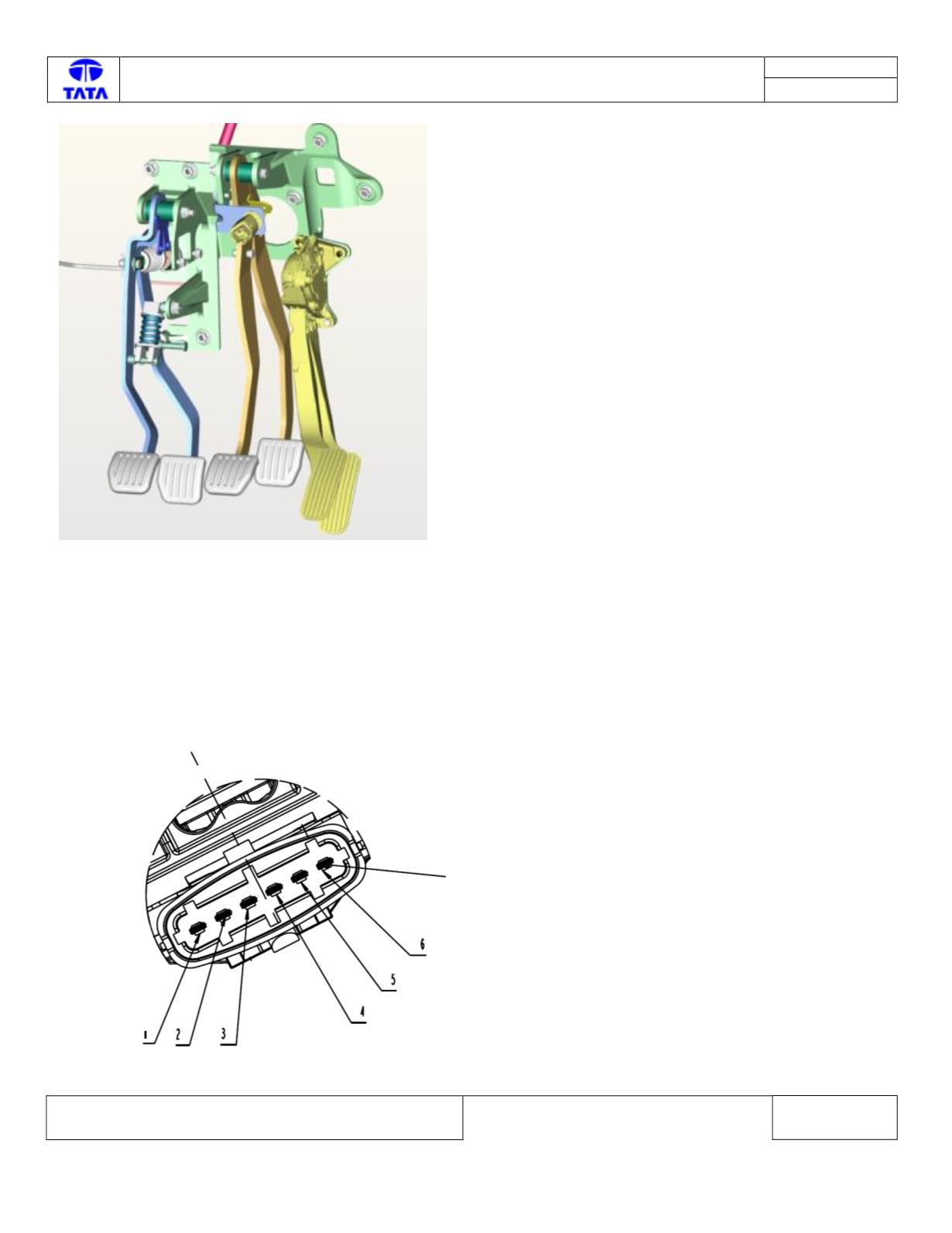

Yellow Colour pedal is accelerator pedal and sensor is located at top of Accelerator pedal assembly.
Yellow + White Colour pedal is Brake pedal. Brake switch connector is located at top of brake pedal assembly.
Connector View & Information: -
Accelerator Pedal Sensor – Component Side:
