KRYOTEC ENGINE
76

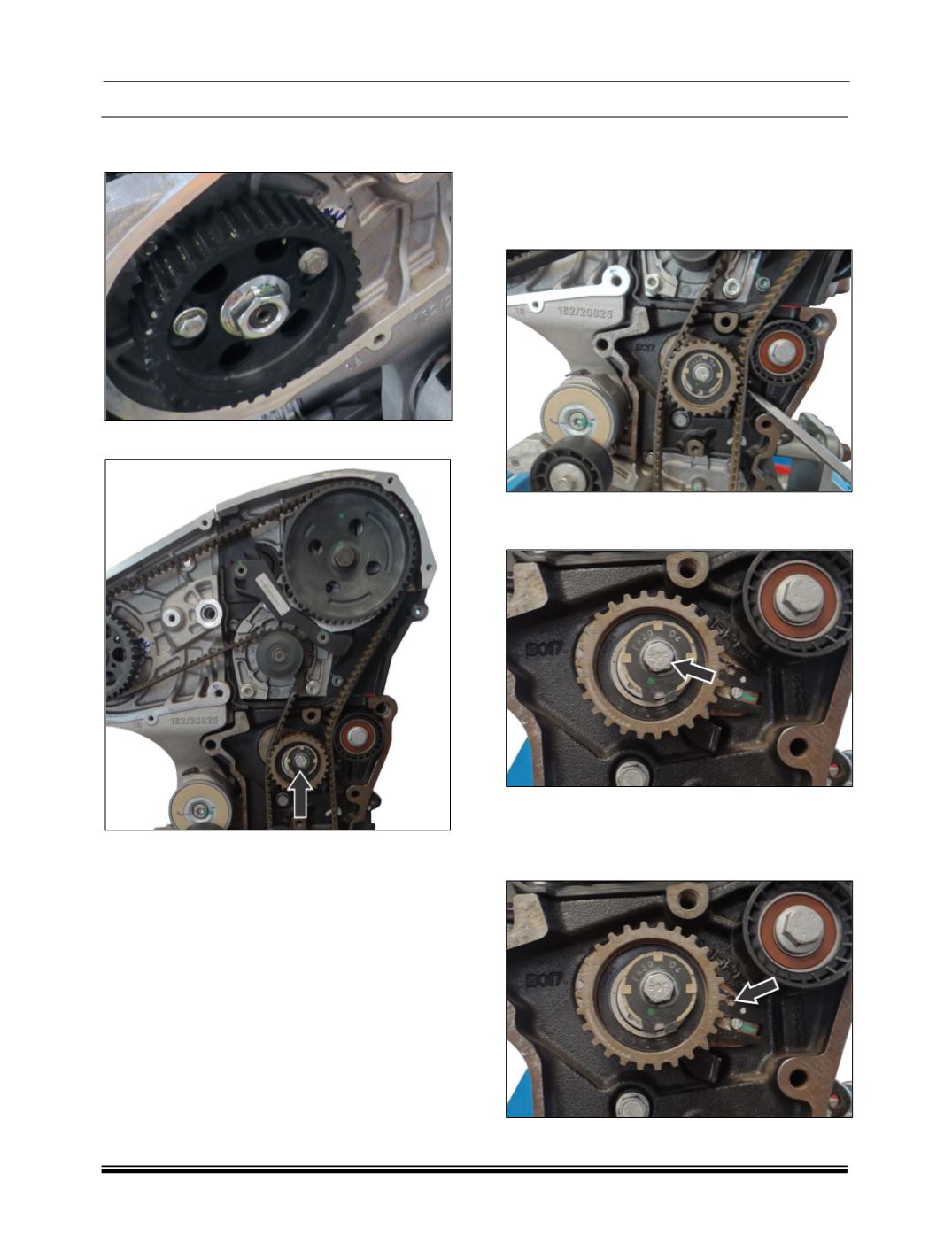

13.Lock the fuel pump gear using standard bolts to
avoid timing resetting.
14.Loosen tension on the belt tensioner.
15.Remove the timing belt.
FITMENT
For fitment follow removal procedure in reverse.
NOTE
Belt has three distinct marking, two on the
groove between teeth and one on belt teeth.
These marking have to be aligned with timing
gears to ensure proper timing.
Two markings on the groove must align with
camshaft and fuel pump gears, one marking on
teeth must align with crankshaft timing gear.
Begin fitment from crankshaft timing gear when
installing the timing belt.
TIMING BELT TENSIONER ADJUSTMENT
PROCEDURE
1. Position the index of the tensioner at the
maximum reference by pressing in upward
direction. In this position tighten the tensioner
bolt.
2. Rotate the crankshaft two complete
revolutions. Loosen the timing tensioner bolt.
3. Use a screwdriver to position the index of the
tensioner at the reference hole. In this position
tighten the tensioner bolt to the proper Torque
Specifications.
Recheck the engine timing using the timing tools.
