C. CONTROL PANEL REMOVAL AND ASSEM-

BLY

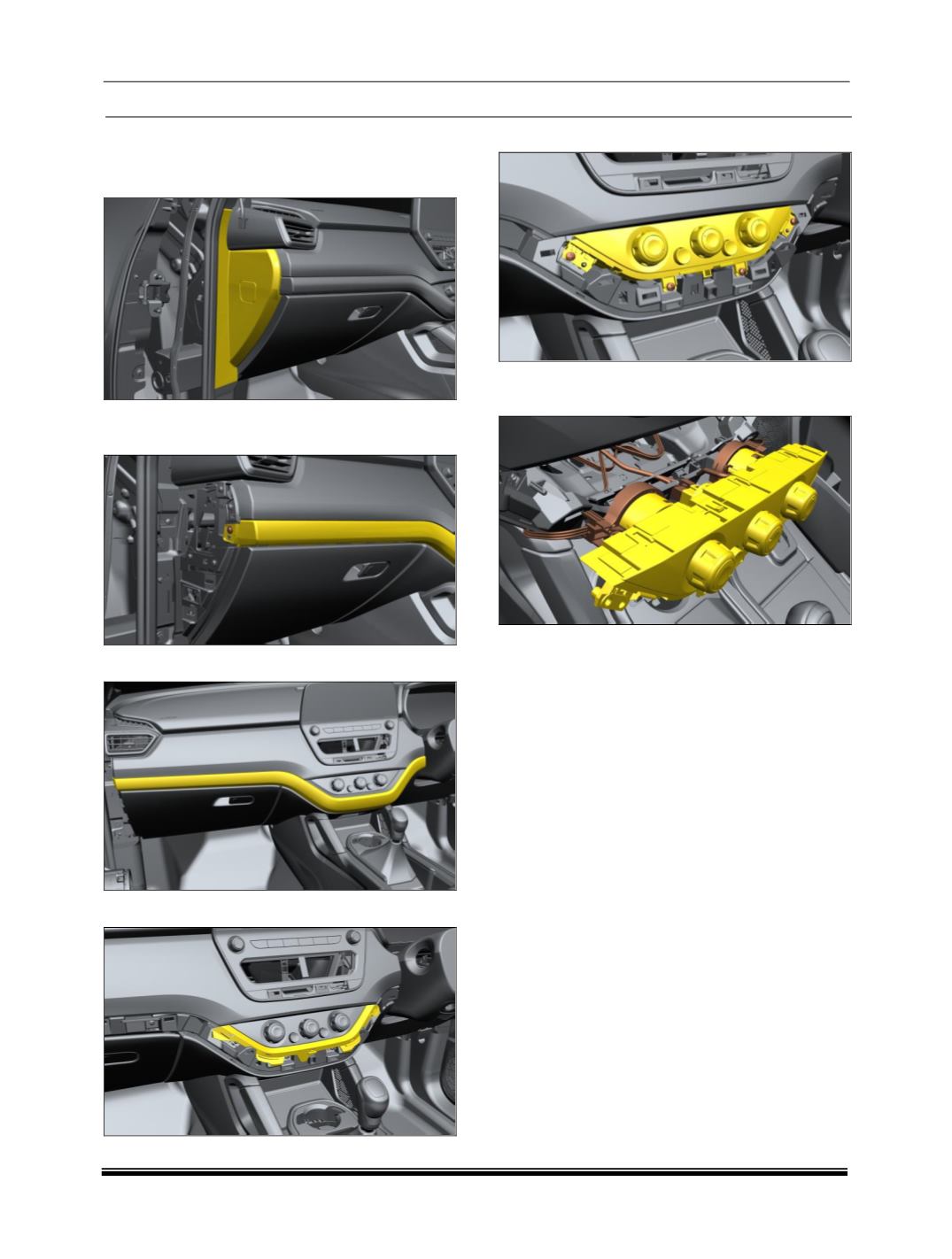

1. Pull out end cover.

2. Remove one mounting screw on co-driver side

armature.

3. Remove the co-driver side armature.

4. Remove Climate control bezel.

5. Remove four mounting screws on control panel.

6. Remove Electrical Connection on control Panel &

take out control panel.

FITMENT

For fitment follow the reverse procedure of removal.
