HVAC
48

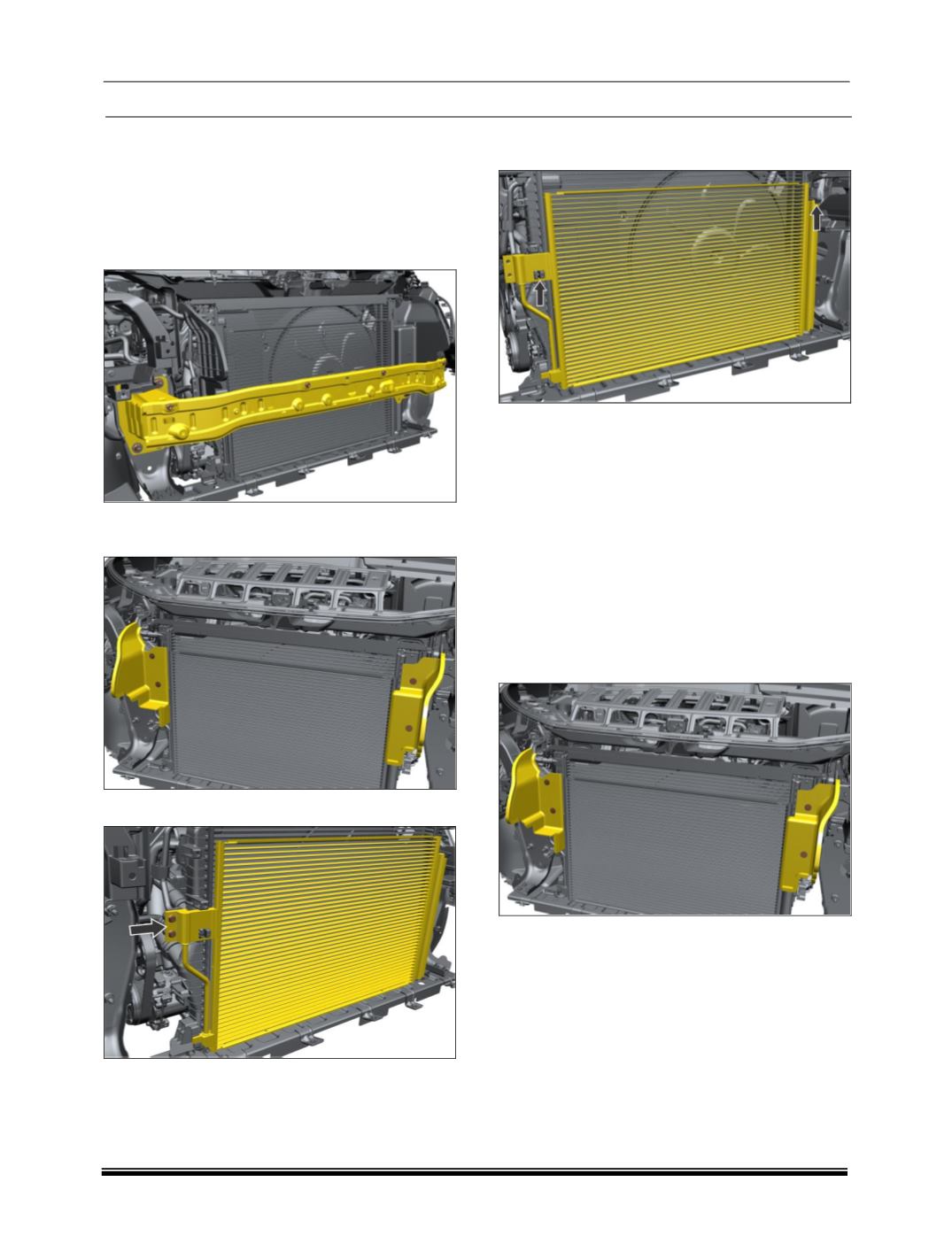

I. CONDENSER REMOVAL AND ASSEMBLY
1. Discharge the refrigerant.
2. Remove front bumper assembly
(For procedure
refer front bumper removal procedure in body
section).
3. Remove cross member Front crash member.
4. Remove Radiator seal from LH & RH side of
vehicle.
5. Disconnect the refrigerant lines
.
6. Remove the 2 mounting snaps and separate
the condenser assembly from vehicle.
CAUTION
Close the open ports with suitable cap.
FITMENT
For fitment follow reverse procedure of removal
J. CONDENSER SEALING DUCT REMOVAL
AND ASSEMBLY
1. Open the bonnet.
2.
Remove front bumper
(For procedure refer front
bumper removal procedure in body section)
3. Loosen and remove mounting screws and then
take out the air guide assembly.
4. Repeat same procedure for other side air guide
FITMENT
For fitment follow the reverse procedure of removal.
