ENGINE 1.3 QUADRAJET (75PS)
67
3A.1.5.2.4 FUEL FEED SYSTEM

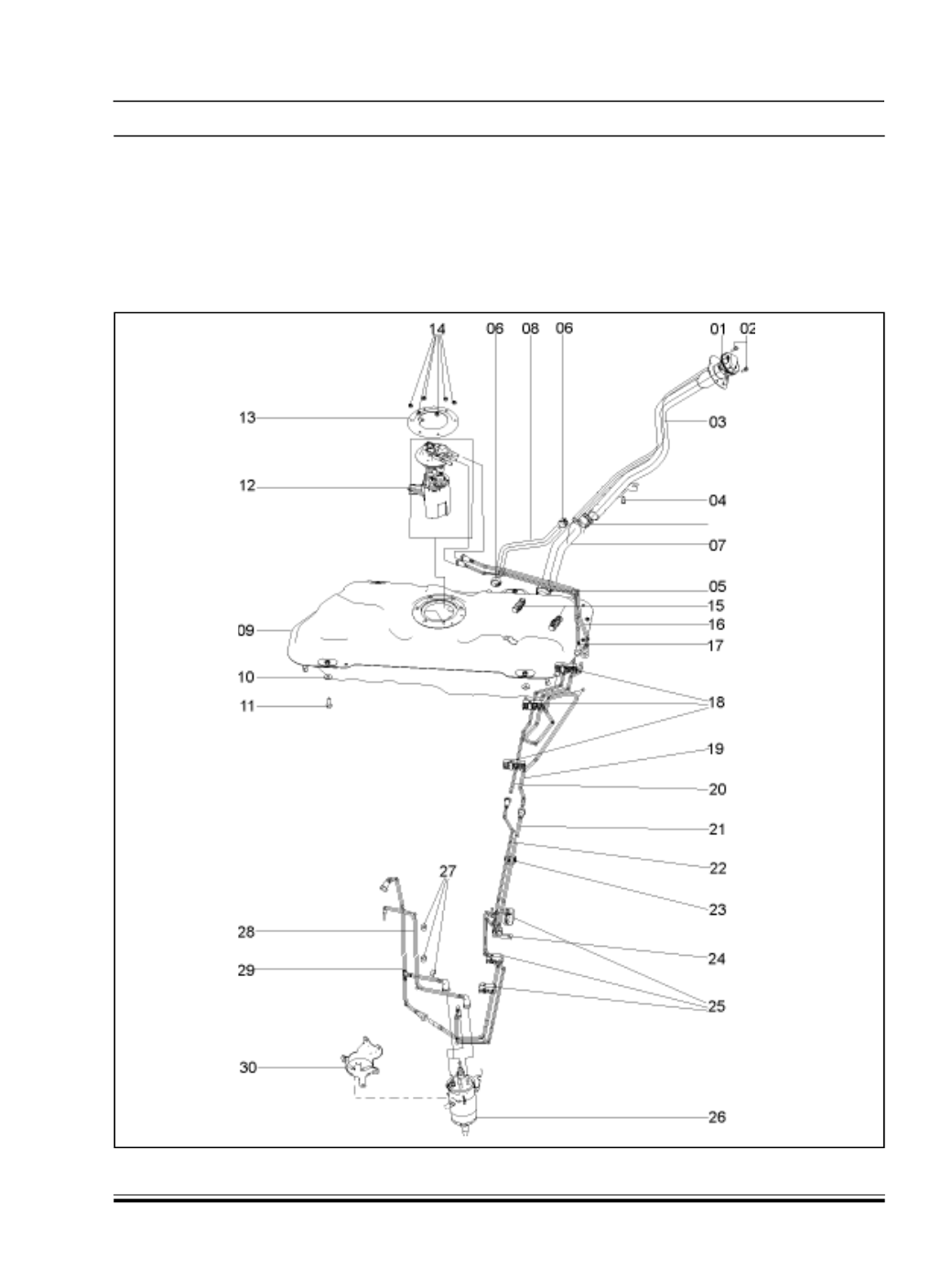

The QUADRAJET Fuel feed system consists of a fuel tank, Intank Pump, a fuel filter, filler neck, fuel cap, fuel
lines, High pressure pump and the injectors. Fuel is sent into the injectors by the Intank pump through fuel lines,
filter and high pressure pump.
A return line from the pump and the injectors is connected to the tank through filter (only in 75 PS engine) thus
forming a closed loop system.
