ENGINE 1.3 QUADRAJET (75PS)

CLASSIFICATIONANDALLOCATIONOF THRUST

WASHERS

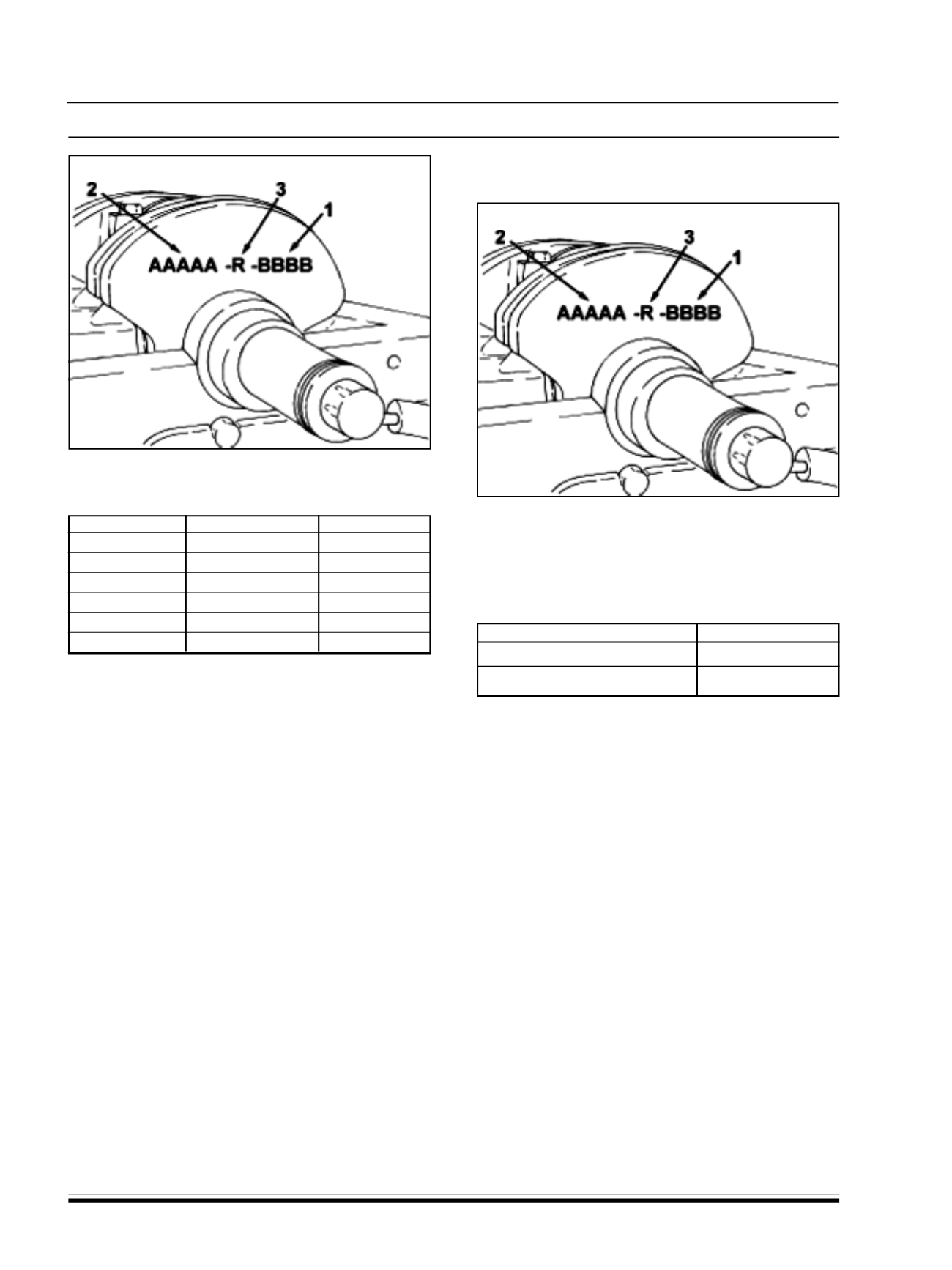

The selection of thrust washers for the centre main

journal should be made using reference 3 in the

diagram (i.e. R for the normal size, RM for a 0.127

mm oversize), therefore the selection should be made

using the crankshaft end float measured previously.

Half ring grade

Thickness

grade R (normal )

2.310 - 2.360 mm

grade RM (0.127 mm oversize)

2.437 - 2.487 mm

This value can be measured, as a final check, using

the calibrated wire (plastic gage).

Crank pin grade

Diameter

Paint Mark

grade A (normal) 42.600 - 42.5914 mm RED paint mark

grade B (normal), 42.591 - 42.582 mm, BLUE paint mark

grade AM

(0.127 undersize) 42.473 - 42.464 mm BROWN paint mark

grade BM

(0.127 undersize) 42.464 - 42.455 mm GREEN paint mark

CLASSIFICATION OF CRANKPINS AND

ALLOCATIONOF HALF-BEARINGS

The procedure described for the main journal half-

bearings should also be carried out for selecting the

crankpin half-bearings.

By way of example, if the alphabetical code identified

is the one indicated by reference 1 in the diagram,

i.e. - BBBB, this means that the four crankpins are all

Grade B (to which a specific diameter belongs) and

are therefore ready for the fitting of half-bearings with

a blue coloured paint mark on the edge.

The first letter on the left - B of the alphabetical code

is always related to the first timing side crankpin.

Refer to the instructions above for the pair of half-

bearings to be allocated to each bearing.
