Revotron 1.2T

156

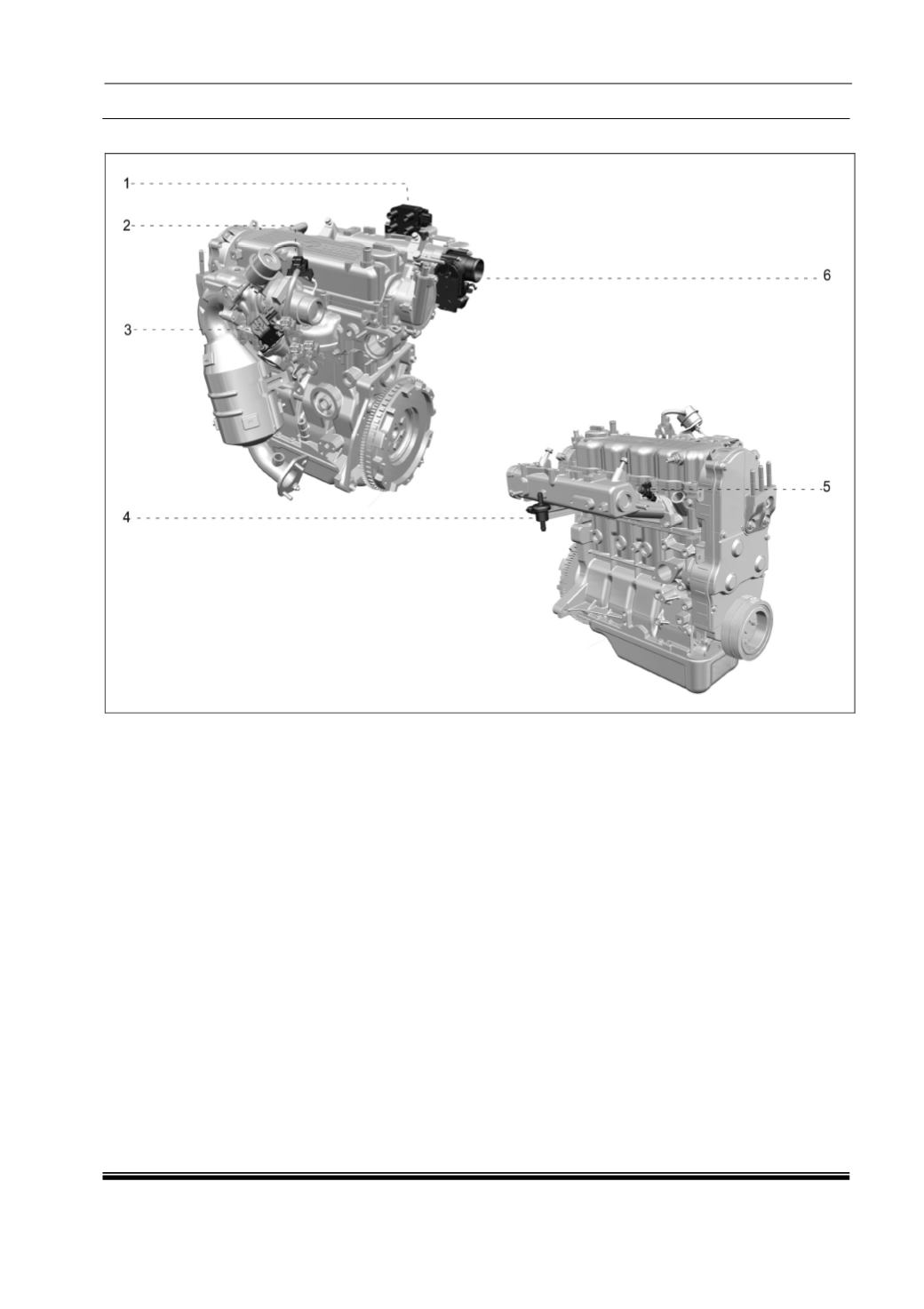

E. ACTUATORS :

1 Ignition Coil

4 Purge Control Valve

2 WG PWM actuator

5 Fuel Injectors

3 Dump Valve

6 Electronic Throttle Body
