209 / 1232
Revotron 1.2T
162

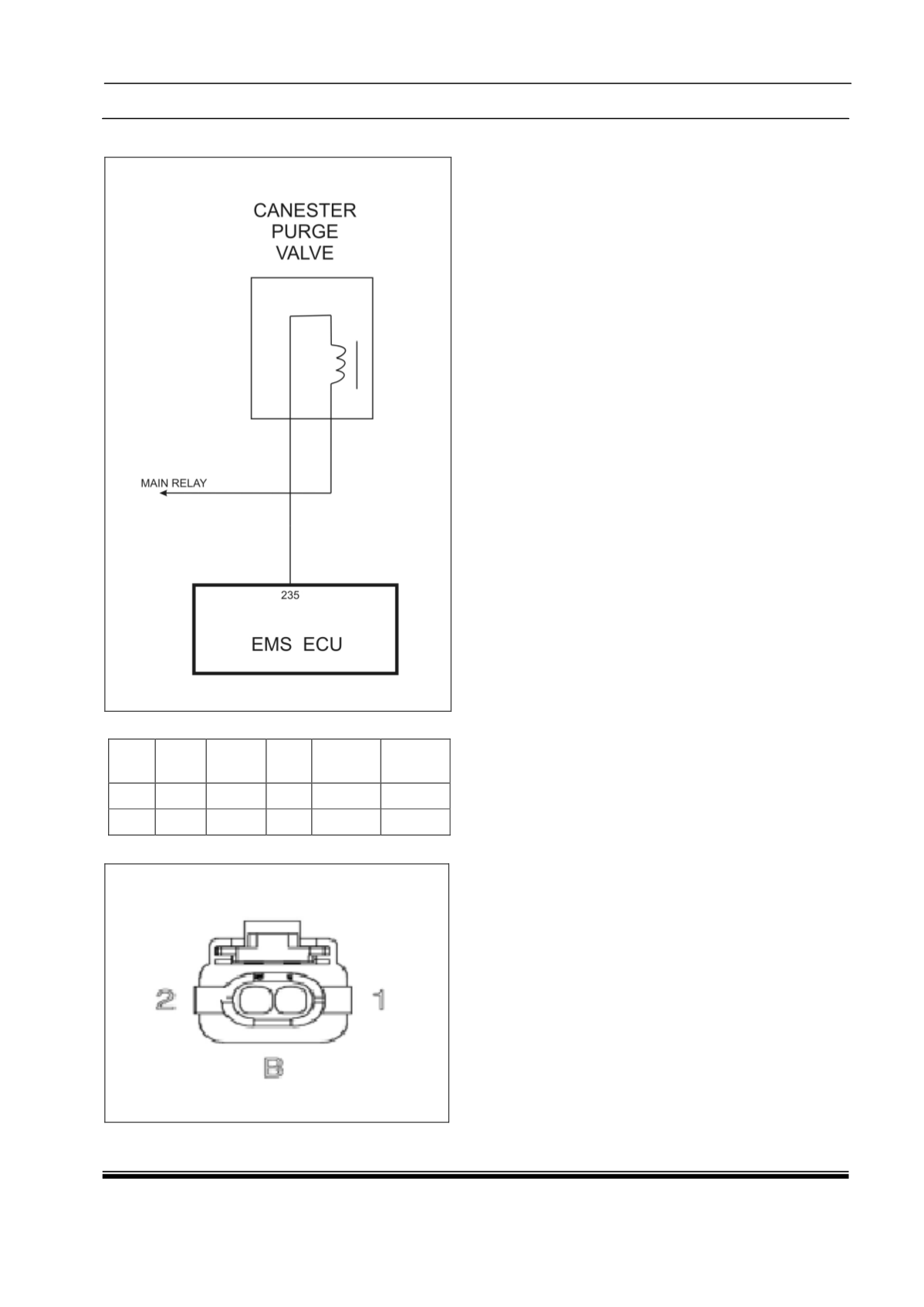

Circuit Schematic Diagram :
Connector Information :
Con
ID
Wire
ID
Color Size Material
Option
1
756
Y/L
0.75 FLRYB
(AD)
2
173E
R/Y
1.00 FLRYB
(AD)
Connector View :
Component Specification :
The canister purge valve (cpv) meters the
gas flow which is generated during
regeneration of the activated carbon filter,
utilized for fuel tank ventilation. The CPV is
triggered by impulses. Duration and frequency
are adjusted by EMS ECU depending on the
load condition of the engine.
Sensor Stand alone Diagnosis :
Measure the resistance across the Purge
valve terminals at room temperature; it should
be 16+/- 2 Ohms.
