ELECTRICAL
112

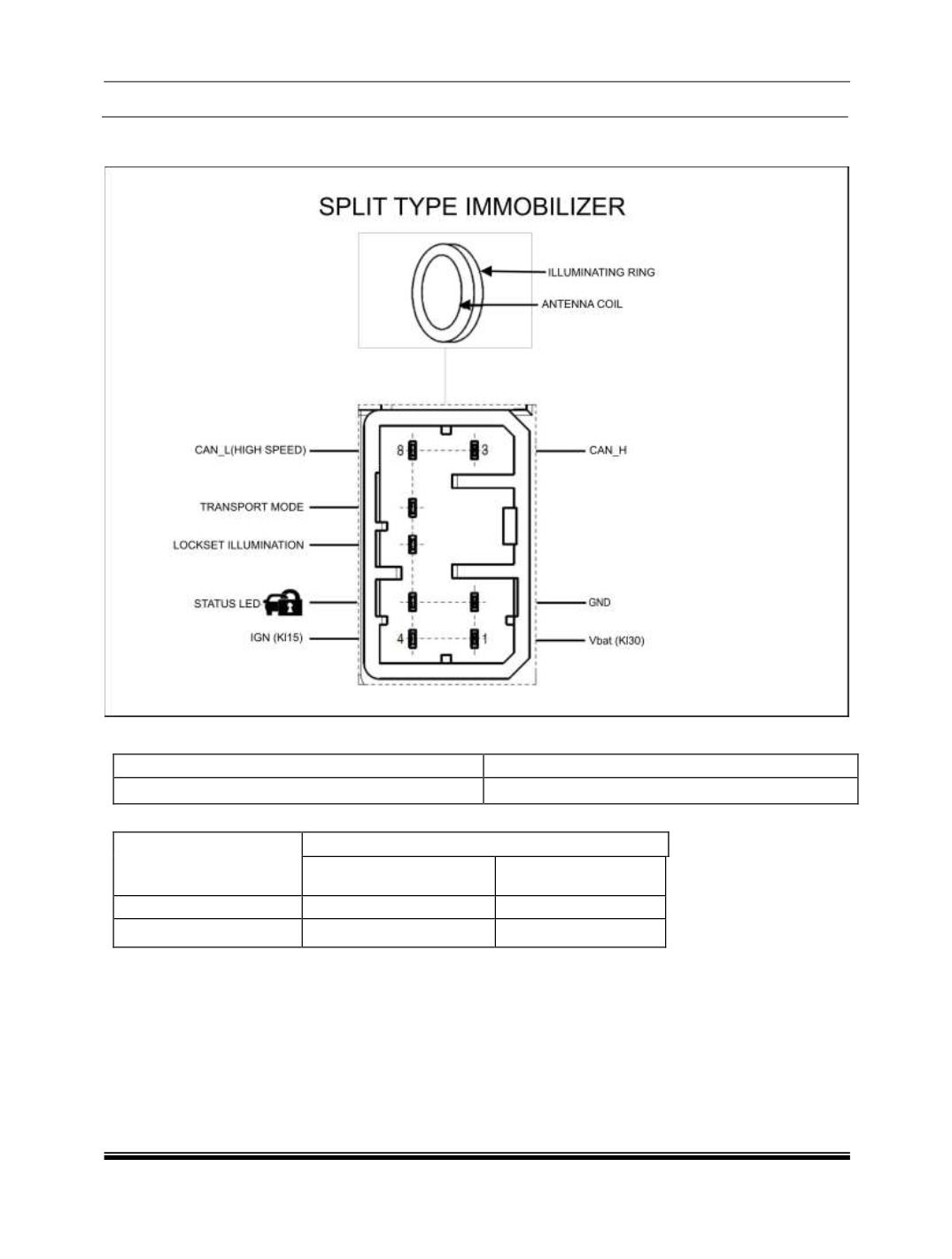

CONNECTION DIAGRAM:
CONNECTION DETAILS OF PIN:
IMMOBILIZER CONNECTOR
INSTRUMENT CLUSTERCONNECTOR
Status bulb Pin -9
Pin 29
IMMOBILIZER
CONNECTOR
EMS VEHICLE CONNECTOR PIN NO.
1.3 Quadrajet 75PS&
1.3 Quadrajet 90PS
Revotron
CAN_H Pin 3
Pin 64
???
CAN_L Pin 5
Pin40
???
